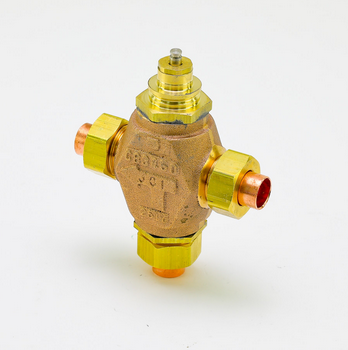

Johnson Controls VG7882GS Globe Valve 3-Way Mixing (1/2 in.)

Product Description

Johnson Controls VG7882GS is a 1/2 in. three-way globe valve body designed for HVAC mixing service. The valve provides a 4.6 Cv capacity with a linear flow characteristic and a bronze body, stainless steel stem, and brass-to-molded elastomeric disk. Rated ANSI Class 250, it is suitable for hot water, chilled water, 50/50 glycol solutions and steam across 35°F to 248°F (2°C to 120°C). It has a union sweat connection, is compact for tight installations, and is supplied less actuator.

• 1/2 in. three-way mixing globe valve; 4.6 Cv capacity; linear flow characteristic
• Bronze body with stainless steel stem and brass-to-molded elastomeric disk; brass trim
• Union sweat end connection; ANSI Class 250 static rating; operating temperature 35°F to 248°F (2°C to 120°C); supplied less actuator; compatible with V-3801 actuator

Product Highlights

1/2 in. 3-way mixing globe valve; 4.6 Cv; sweat connection; bronze body; linear flow; 35–248°F (2–120°C).

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG7882GS

Technical Specifications

• Manufacturer Part Number: VG7882GS
• Brand: Johnson Controls
• Product Type: Globe valve
• Valve Type: 3-way mixing
• Size: 1/2 in.
• Flow Coefficient (Cv): 4.6
• Body Material: Bronze
• Trim Material: Brass
• Stem Material: Stainless steel
• Disk Material: Brass against molded elastomeric disk
• Flow Characteristic: Linear
• Connection Type: Union sweat
• Service / Media: Hot water; chilled water; 50/50 glycol solutions; steam (HVAC)
• Operating Temperature: 35°F to 248°F (2°C to 120°C)
• Static Pressure Rating: ANSI Class 250
• Compatible Actuator: V-3801 compact pneumatic actuator
• Supplied As: Valve body only (less actuator)
• Factory/Field Assembly: Factory or field assembly supported
