Johnson Controls VG7882GS+8122G 3-way mixing valve 4.6 Cv (1/2 inches union sweat) VA-8122

Product Description

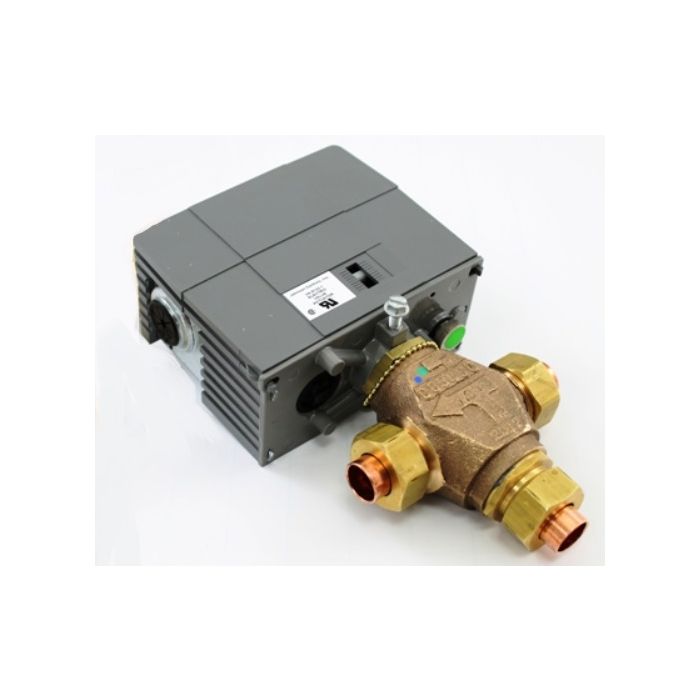

The Johnson Controls VG7882GS+8122G is a 3-way mixing valve assembly combining a VG7882GS valve with a VA-8122 proportional electric actuator for hydronic systems. It features 1/2-inch union sweat connections for 1/2-inch nominal tubing, a Cv of 4.6, and a brass body. Rated for 25-125 psi and 32-180 F, it provides flow regulation and temperature mixing for heating, cooling, process control, and water treatment applications.

• 3-way mixing valve assembly paired with VA-8122 proportional electric actuator
• 1/2" union sweat connections for 1/2" nominal tubing; flow coefficient Cv 4.6
• Brass body construction; operating range 25-125 psi and 32-180 F for hydronic applications

Product Highlights

3-way mixing valve assembly with 4.6 Cv and VA-8122 actuator for 1/2" nominal tubing.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG7882GS+8122G
• Country of Origin: US

Technical Specifications

• MPN: VG7882GS+8122G
• Brand: Johnson Controls
• Valve type: 3-way mixing valve
• Size/Connection: 1/2" union sweat (for 1/2" nominal tubing)
• Flow coefficient (Cv): 4.6
• Actuator: VA-8122 proportional electric actuator
• Body material: Brass
• Pressure range: 25-125 psi
• Temperature range: 32-180 F
• Intended tube size: 1/2" nominal tubing
• Weight: 4.99 lb
• Country of origin: US
• Condition: New
• Model notes: VG7882GS valve with VA-8122-1 proportional electric actuator
