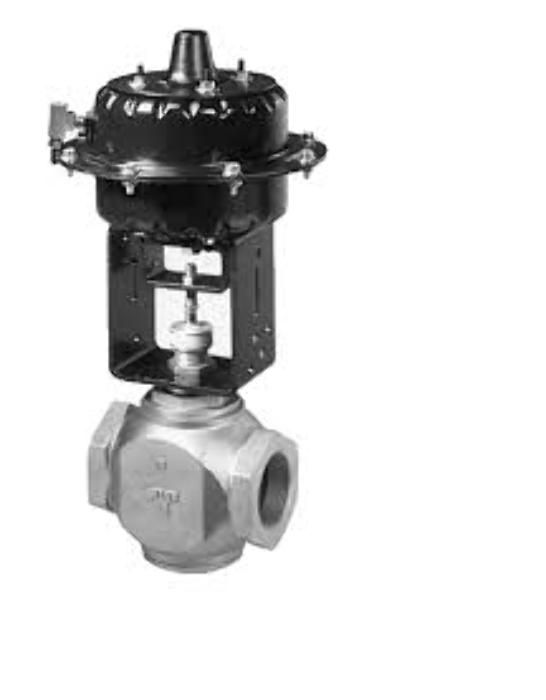

Johnson Controls VG7844ST+823D01 Globe Valve Assembly 3 Way 2 in.

Product Description

The Johnson Controls VG7844ST+823D01 is a globe valve assembly designed for efficient control in HVAC systems. It features a three-way configuration, a two-inch size, and is suitable for various applications including hot water, chilled water, and steam. This valve is equipped with a bronze body and stainless steel stem and seat, ensuring durability and corrosion resistance.

• Corrosion-resistant electro-painted finish
• Spring-loaded PTFE and elastomer V-rings for reliable sealing
• Static pressure rating of ANSI Class 250

Product Highlights

Ideal for use in HVAC control systems, this valve maintains effective temperature regulation and fluid flow.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7844ST+823D01

Technical Specifications

• Housing: Die-formed carbon steel coated with corrosion-resistant finish
• Service: Hot water, chilled water, 50/50 glycol solutions, and steam for HVAC systems
• Closeoff Pressure: 48/16 psig
• Flow Characteristic: Linear
• Operating Conditions: 35 F to 338 F (2 C to 170 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
