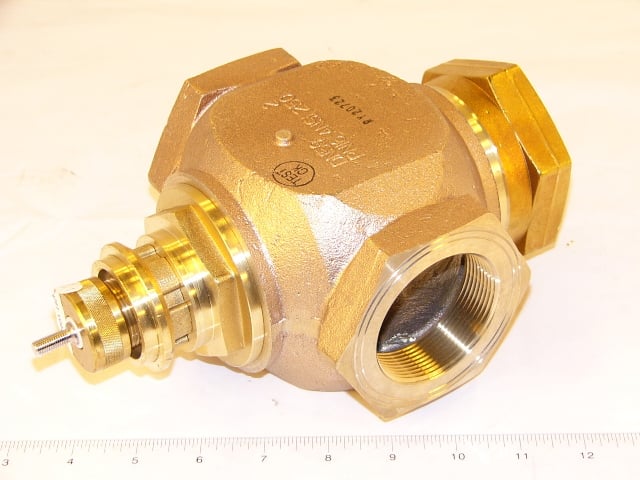

Johnson Controls VG7842ST+823C00 Series VG7000 Brass Trim Globe Valve

Product Description

The Johnson Controls Series VG7000 Brass Trim Globe Valve is engineered for precision fluid control in HVAC systems, handling both hot and chilled water, as well as up to 38 psig saturated steam. The valve features a pneumatic actuator from the MP82 Series, ensuring reliable operation with a spring range of 3-7 psig and a maximum supply air pressure of 25 psig. Suited for environments with fluid temperatures ranging from 35 to 284°F, it is an essential component for robust HVAC management.

• Supports ANSI Class 250 static pressure rating.
• Compatible with V-9502-95 Positioner for enhanced functionality.
• Industrial-grade construction suitable for both factory and field assembly.

Product Highlights

This globe valve integrates seamlessly into commercial HVAC systems, prioritizing durability and performance under various operational conditions.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7842ST+823C00

Technical Specifications

• Valve Type: Globe Valve
• Material: Brass Trim
• Actuator Type: Pneumatic, MP82 Series
• Maximum Air Pressure: 25 psig
• Fluid Temperature Range: 35 to 284°F
• Steam Pressure Capability: 38 psig saturated steam
• Pressure Rating: ANSI Class 250
