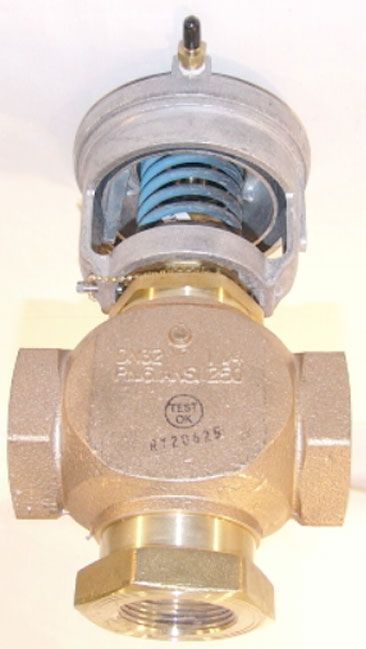

Johnson Controls VG7842RT+3008E 1-1/2 inch NPT Bronze Pneumatic Valve

Product Description

The Johnson Controls VG7842RT+3008E is a 1-1/2 inch NPT bronze pneumatic valve, designed for precise control in pneumatic systems. This robust valve with a three-way mixing capability is ideal for regulating water or steam flow within industrial settings.

• Supports both hot and chilled water applications from 35 to 284 degrees Fahrenheit.
• ANSI Class 250 body for high durability and pressure handling up to 38 psig saturated steam.
• Features a die-cast actuator enclosure that provides enhanced ruggedness.

Product Highlights

Johnson Controls' VG7842RT+3008E ensures optimal performance and reliability in harsh environments. Its compact design and bronze construction make it a preferred choice for many pneumatic control applications.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: VG7000
• MPN: VG7842RT+3008E

Technical Specifications

• Valve Size: 1-1/2 inches
• Connection Type: NPT
• Configuration: 3-Way
• Body Material: Bronze
• Max Pressure: 15 psi WSP, 125 psi WOG
• Weight: 13.30 lbs
