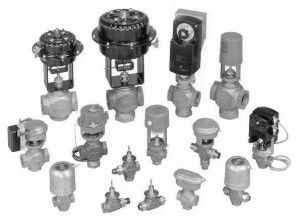

Johnson Controls VG7842PT+7153G Globe Valve Assembly, 3 Way 1-1/4 in

Product Description

The Johnson Controls VG7842PT+7153G is a globe valve assembly designed for efficient fluid control in HVAC systems. This valve features a three-way configuration and a size of one and one-fourth inches. It is suitable for hot water, chilled water, 50/50 glycol solutions, and steam applications. The valve body is constructed from bronze, ensuring durability and resistance to corrosion.

• NPT connections with a static pressure rating of ANSI Class 250.
• Direct coupled actuator with a 90 in-lb spring return.
• Electrical connection via screw terminals for 16 AWG maximum wire.

Product Highlights

This globe valve is critical for controlling the flow of liquids in HVAC systems.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: VG7842PT+7153G

Technical Specifications

• Service: Hot water, chilled water, 50/50 glycol solutions, steam
• Closeoff Pressure: 52/57 psig
• Flow Characteristic: Linear
• Operating Conditions: 35 F to 284 F (2 C to 140 C)
• Actuator Operating Conditions: 0 F to 140 F (-18 C to 60 C)
• Power Consumption: 4.7 VA
• Electrical Connection: Screw terminals for 16 AWG maximum
• Housing: NEMA 2, IP42
