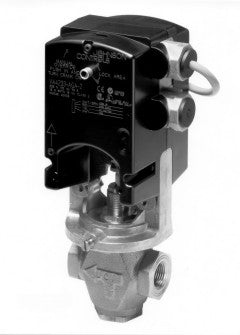

Johnson Controls VG7842PT+423BGC Globe Valve Assembly 3 Way 1-1/4 in

Product Description

The Johnson Controls VG7842PT+423BGC is a globe valve assembly designed for HVAC applications. This three-way valve has a size of one and one-fourth inches, with a bronze body and stainless steel stem. It includes a direct mount electric actuator with a spring return rated at sixty-one inch-pounds. The valve operates on twenty to thirty VAC for on/off control.

• Compatible with hot water, chilled water, and steam.
• Pressure rating meets ANSI Class 250.
• Includes a manual opener feature.

Product Highlights

The VG7842PT+423BGC is ideal for HVAC systems, providing reliable control of water and glycol solutions.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7842PT+423BGC

Technical Specifications

• NEMA Rating: NEMA 2, IP42
• Service Compatibility: Hot water, chilled water, glycol solutions, and steam
• Auxiliary Switch: 2 x SPDT
• Closeoff Pressure: 38/38 psig
• Power Consumption: 12 VA
• Flow Characteristic: Linear
• Operating Conditions: 35 F to 250 F (2 C to 121 C)
• Electrical Connection: 18 inches cable with 18 AWG wire leads
• Actuator Operating Conditions: -4 F to 122 F (-20 C to 50 C)
