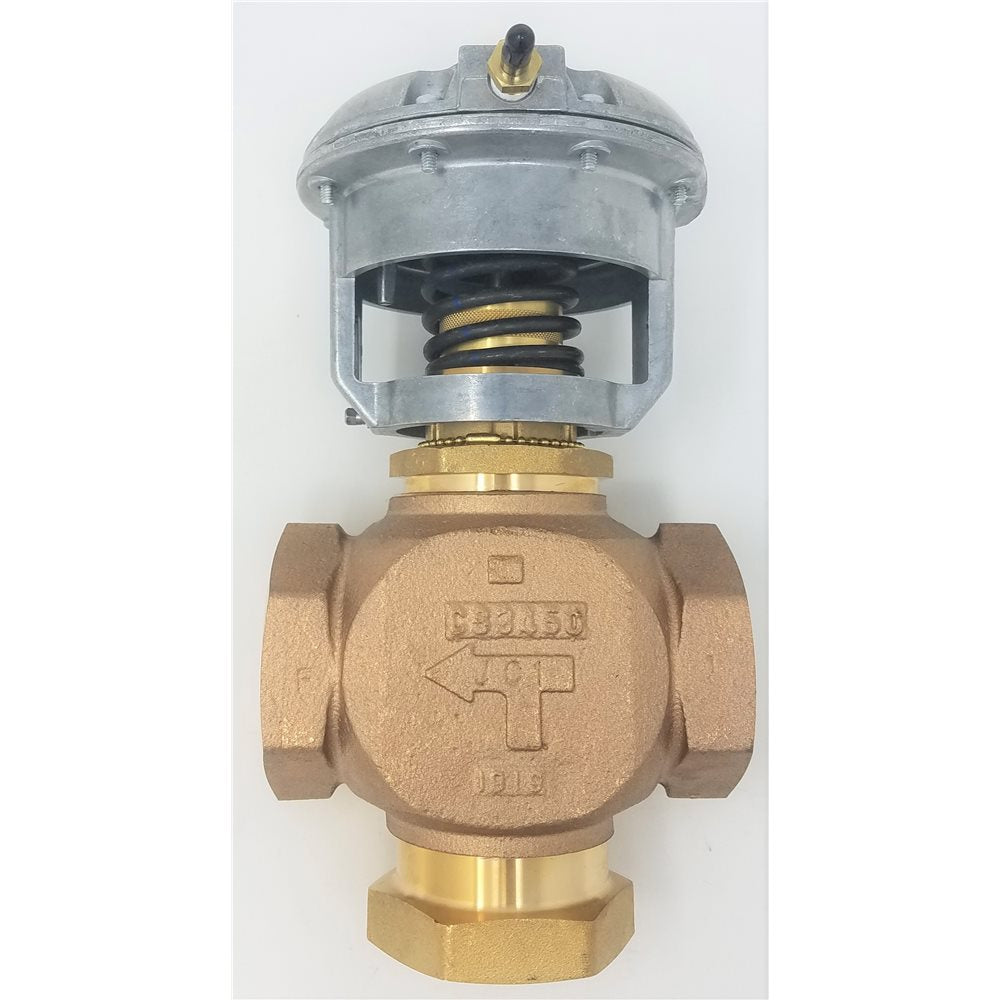

Johnson Controls VG7842PT+3008D Globe Valve Assembly, 3 Way 1-1/4 in

Product Description

The JOHNSON CONTROLS VG7842PT+3008D globe valve assembly is a 3-way, 1-1/4 inch NPT valve with a bronze body and 18.5 Cv. It features a stainless steel stem and brass against a molded elastomeric disk seat. The valve includes a pneumatic actuator with a 1/8 inch NPT barbed fitting for a 1/4 inch or 5/32 inch O.D. polytubing air connection, operating at 4 to 8 psig.

• Valve Body Static Pressure Rating: ANSI Class 250
• Factory Or Field Assembly
• Designed for hot water, chilled water, 50/50 glycol solutions, and steam for HVAC systems

Product Highlights

This globe valve assembly is designed for HVAC systems, controlling hot or chilled water and steam with a pneumatic actuator.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG7842PT+3008D

Technical Specifications

• Housing: Die-Cast Aluminum
• Service: Hot Water, Chilled Water, 50/50 Glycol Solutions, And Steam For HVAC Systems
• Closeoff Pressure: 47/14 psig
• Flow Characteristic: Linear
• Operating Conditions: 35 F To 248 F (2 C To 120 C)
• Actuator Operating Conditions: -20 F To 150 F (-29 C To 66 C)
• CV: 18.5
• Trim: Brass
• Linkage: VG7000-1005
• Actuator: 3008D
• Pipe Size: 1.25 in
• Connection: NPT
• Valve Type: 3-Way
• Flow Pattern: Mixing
• Power Supply: Pneumatic
• Spring Range: 4-8 PSI
• Valve Number: VG7842PT
• Actuator Type: Pneumatic
• Size: 1-1/4"
• Flow Capacity (Cv): 18.5
• Material: Cast Bronze
• Body Pattern: 3-Way
• Fail-Safe: Spring Return
• Trim Material: Stainless Steel
• Pattern: 3-way
• Control Signal: Pneumatic
