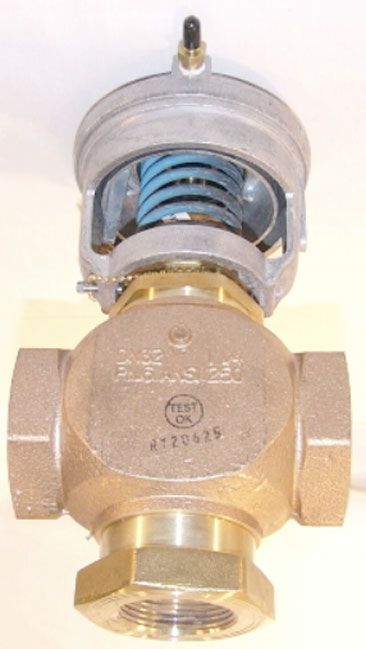

Johnson Controls VG7842PT+3008B Pneumatic Valve Bronze NPT 1-1/4 Inch

Product Description

The Johnson Controls VG7842PT+3008B is a robust pneumatic valve designed for efficient control of water and steam flow in HVAC systems. This valve features a 1-1/4 inch NPT bronze body and is equipped with a V-3000-8012 pneumatic actuator, making it ideal for a variety of industrial applications.

• Controls water or 38 psig saturated steam in HVAC systems
• Temperature range from 35 to 284 degrees Fahrenheit
• Class 250 static pressure rating, ensuring durability under high pressure

Product Highlights

This valve offers precise flow control through its durable construction and specialized actuator. It is suitable for factory or field assembly, allowing flexibility during installation.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7842PT+3008B

Technical Specifications

• Body Material: Bronze
• Valve Size: 1-1/4 inch NPT
• Valve Connection: NPT
• Piping Configuration: 3-Way
• Valve Application: Steam, Water
• Max Pressure: 15 psi WSP, 125 psi WOG
