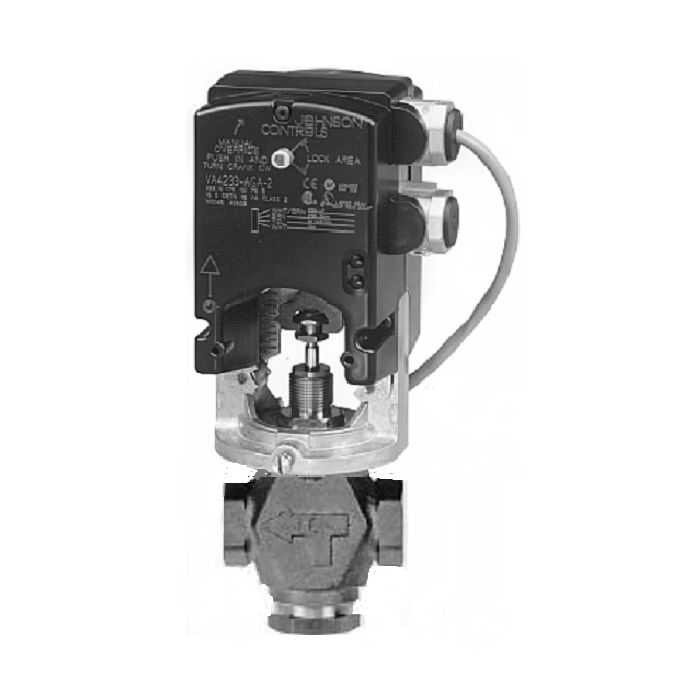

Johnson Controls VG7842NT+423GGC Globe Valve Assembly, 3 Way 1 in.

Product Description

The Johnson Controls VG7842NT+423GGC Globe Valve Assembly offers a reliable and efficient solution for various HVAC applications. This three-way valve features an NPT connection and has a flow coefficient of 11.6 Cv, ensuring optimal performance in diverse environments.

• Robust bronze body with stainless steel stem
• Direct mount electric actuator with spring return
• Compatible with hot water, chilled water, and steam systems

Product Highlights

This valve assembly functions effectively in both commercial and residential HVAC systems. It has been designed for 0 to 10 VDC proportional control, allowing for precise flow regulation.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7842NT+423GGC

Technical Specifications

• Housing: NEMA 2, IP42
• Service: Hot water, chilled water, 50/50 glycol solutions, steam
• Auxiliary Switch: 2 x SPDT
• Closeoff Pressure: 63/66 psig
• Power Consumption: 12 VA
• Flow Characteristic: Linear
• Operating Conditions: 35 F to 250 F (2 C to 121 C)
• Electrical Connection: 18 in. cable with 18 AWG wire leads
• Actuator Operating Conditions: -4 F to 122 F (-20 C to 50 C)
