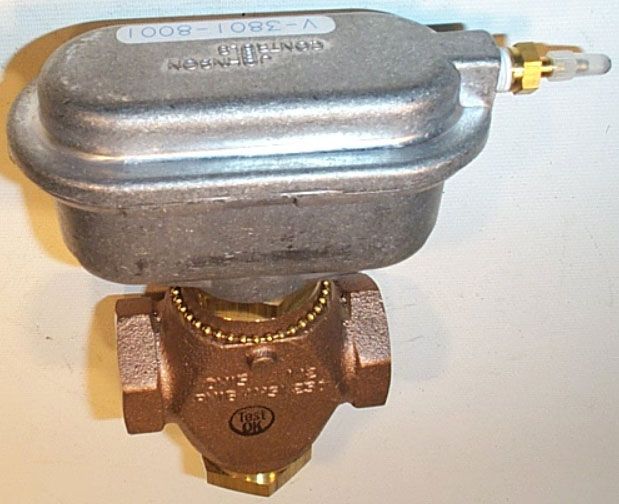

Johnson Controls VG7842GS+3801E Bronze Pneumatic Valve 1/2 NPT Spring Range 9-13 psi

Product Description

The Johnson Controls model VG7842GS+3801E is a compact, bronze, pneumatic, 3-way mixing valve, featuring a 1/2 inch NPT connection. This normally-closed valve is equipped with an actuator and is designed for precise control over your HVAC and water systems.

• Efficient operation with a 9-13 psi spring range.
• Maximum flow of 4.6 CV, ideal for multiple applications including HVAC.
• Equipped with a durable stainless steel valve stem and is rated for up to 25 psi supply air pressure.

Product Highlights

This valve offers reliable performance for regulating hot or chilled water and even saturated steam. Its brass trim globe and compact pneumatic actuator make it suitable for environments where space is at a premium.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7842GS+3801E

Technical Specifications

• Valve Size: 1/2 inch
• Connection Type: NPT
• Configuration: 3-Way
• Body Material: Bronze
• Max Pressure: 15 psi WSP, 125 psi WOG
• Fluid Temperature Range: 35 to 248 degrees Fahrenheit
• Weight: 4.00 lbs
