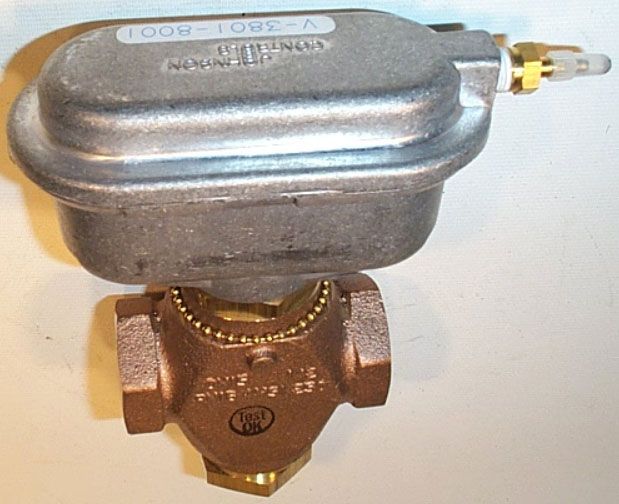

Johnson Controls VG7842GS+3801D Pneumatic Valve 1/2 Inch NPT Bronze

Product Description

The Johnson Controls VG7842GS+3801D pneumatic valve, featuring a 1/2 inch NPT bronze body, is engineered for optimal performance in a variety of hydronic heating and cooling systems.

• Engineered for efficient flow control with a maximum capacity of 4.6 Cv.
• Built from robust bronze, ensuring durability and corrosion resistance.
• Utilizes a compact pneumatic actuator for reliable, normally-closed operation.

Product Highlights

This valve is designed for precise control with a spring range of 4-8 psi, suitable for both water and glycol-based systems. Its NPT threading makes it ideal for standardized connections and retrofit installations.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7842GS+3801D
• Model: VG7000

Technical Specifications

• Valve Size:1/2 inch
• Connection Type: NPT
• Body Material: Bronze
• Max Pressure: 15 psi WSP, 125 psi WOG
• Piping Configuration: 3-Way
• Valve Application: Steam, Water
