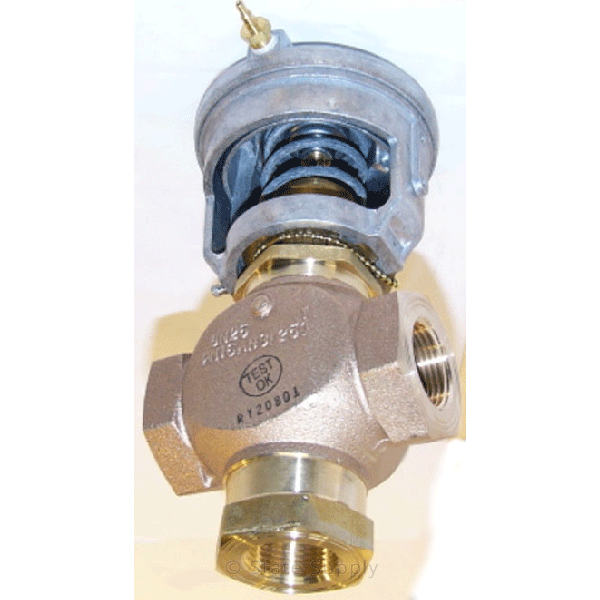

Johnson Controls VG7842ET + 3008EP Globe Valve Assembly 3 Way 1/2 in.

Product Description

The Johnson Controls VG7842ET + 3008EP Globe Valve Assembly is a three-way valve designed for HVAC applications. This valve operates under a static pressure rating of ANSI Class 250. It features a bronze body with a stainless steel stem and a brass seat. The pneumatic actuator allows control over air flow using a 1/8 inch NPT barbed fitting for flexible tubing connections.

• Three-way valve design
• Operating range from 35°F to 248°F (2°C to 120°C)
• Ideal for hot water, chilled water, and steam systems

Product Highlights

This valve is suitable for setups requiring reliable performance in HVAC systems.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7842ET + 3008EP

Technical Specifications

• Housing: Die-Cast Aluminum
• Service: Suitable for hot water, chilled water, 50/50 glycol solutions, and steam
• Closeoff Pressure: 191/348 psig
• Flow Characteristic: Linear
• Operating Conditions: 35°F to 248°F (2°C to 120°C)
• Actuator Operating Conditions: -20°F to 150°F (-29°C to 66°C)
