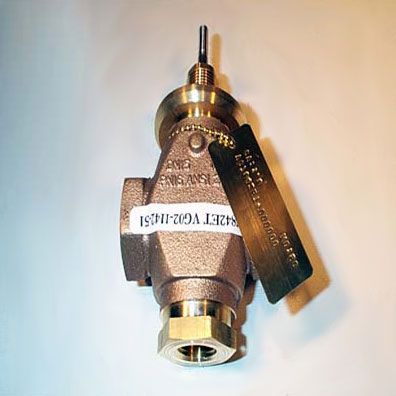

Johnson Controls VG7842ET Globe Valve, 3-Way Mixing, Half Inch, Brass, HVAC Water and Steam Control

Product Description

The Johnson Controls VG7842ET is a robust 1/2 inch NPT 3-way globe valve, ideally suited for regulating water and steam flow in HVAC systems. Made of high-quality brass, this valve stands out for its durability and corrosion resistance, making it a reliable choice for both hot and chilled water applications, as well as up to 38 psig of saturated steam.

• Available in configurations including normally open, normally closed, and three-way mixing.
• Complies with ANSI Class 250 for pressure and temperature.
• Features tight shutoff testing to maximize occupant comfort and enhance energy efficiency.

Product Highlights

Equipped with a 1.8 coefficient of volume (Cv), the VG7842ET provides precise flow control. Johnson Controls' industry-leading Ring Pack Packing's ensure operational reliability and an extended service life.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7842ET

Technical Specifications

• Material: Brass
• Size: 1/2 inch
• Connection Type: NPT
• Piping Configuration: 3-Way
• Max Pressure: 15 psi WSP
• Temperature Range: 35 to 284 degrees Fahrenheit
