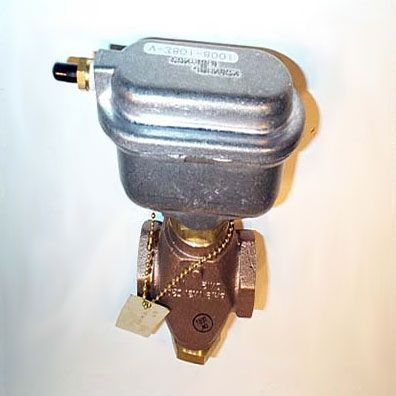

Johnson Controls VG7842ES+3801E 1/2 inch NPT 3-Way Valve and Actuator

Product Description

Introducing the Johnson Controls VG7842ES+3801E, a 1/2 inch NPT 3-way mixing brass trim globe valve paired with a compact pneumatic actuator, perfect for systems utilizing hot or chilled water or 15 psig saturated steam. This robust valve setup is ideal for effective fluid management in a variety of environments.

• Suitable for both hot and chilled water applications.
• Optimized for systems requiring up to 15 psig of saturated steam.
• Fluid temperature operational range from 35 to 248 degrees Fahrenheit.

Product Highlights

The Johnson Controls VG7842ES+3801E features a stainless steel valve stem and is rated for a maximum supply air pressure of 25 psig. Its compact size ensures it fits into tight spaces such as baseboard radiators and convectors, making it a versatile choice for various installations.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7842ES+3801E
• Model: VG7000

Technical Specifications

• Valve Size: 1/2 inch
• Valve Connection: NPT
• Piping Configuration: 3-Way
• Body Material: Brass
• Valve Application: Chilled Water, Glycol, Hot Water, Steam
• Max Pressure: 15 psi WSP
