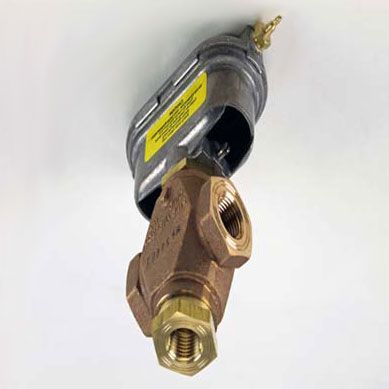

Johnson Controls VG7842ES+3801D 1/2 inch NPT 3-Way Valve & Actuator

Product Description

Johnson Controls VG7842ES+3801D Globe Valve is a versatile solution for controlling flow in HVAC systems. Optimized for both hot and chilled water applications and up to 15 psig saturated steam, this 1/2 inch NPT 3-way valve with a brass trim is engineered for efficiency and reliability.

• Durable brass body construction enhances corrosion resistance.
• Compact pneumatic actuator with 4-8 psig spring range.
• Designed for temperature ranges from 35 to 248 degrees Fahrenheit.

Product Highlights

This valve ensures smooth operation and precise control of fluid dynamics in your system with a Cv of 1.8, making it suitable for moderate flow applications. The compact actuator offers robust performance in a small footprint, ideal for tight spaces.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7842ES+3801D

Technical Specifications

• Valve Size: 1/2 inch
• Valve Connection: NPT
• Piping Configuration: 3-Way
• Body Material: Brass
• Valve Application: Chilled Water, Glycol, Hot Water, Steam
• Max Pressure: 15 psi WSP
