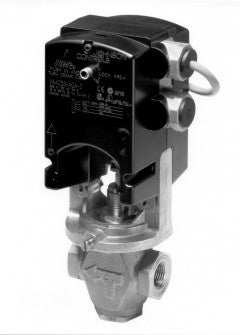

Johnson Controls VG7842CT+423GGC Globe Valve Assembly 3 Way 1/2 in.

Product Description

The Johnson Controls VG7842CT+423GGC is a globe valve assembly designed for HVAC systems. This three-way valve provides reliable performance in regulating water flow. It is made from bronze with a stainless steel stem and elastomeric disk seat.

• Direct mount electric actuator.
• Spring return torque of 61 in-lb.
• Supports a voltage range of 0 to 10 VDC for proportional control.

Product Highlights

This valve is suitable for various applications including hot water, chilled water, and steam, making it versatile for HVAC systems.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7842CT+423GGC

Technical Specifications

• Housing: NEMA 2, IP42
• Service: Hot Water, Chilled Water, 50/50 Glycol Solutions, and Steam
• Actuator Operating Conditions: -4 F to 122 F (-20 C to 50 C)
• Closeoff Pressure: 345/345 psig
• Power Consumption: 12 VA
• Flow Characteristic: Linear
• Electrical Connection: 18 in. cable with 18 AWG wire leads
