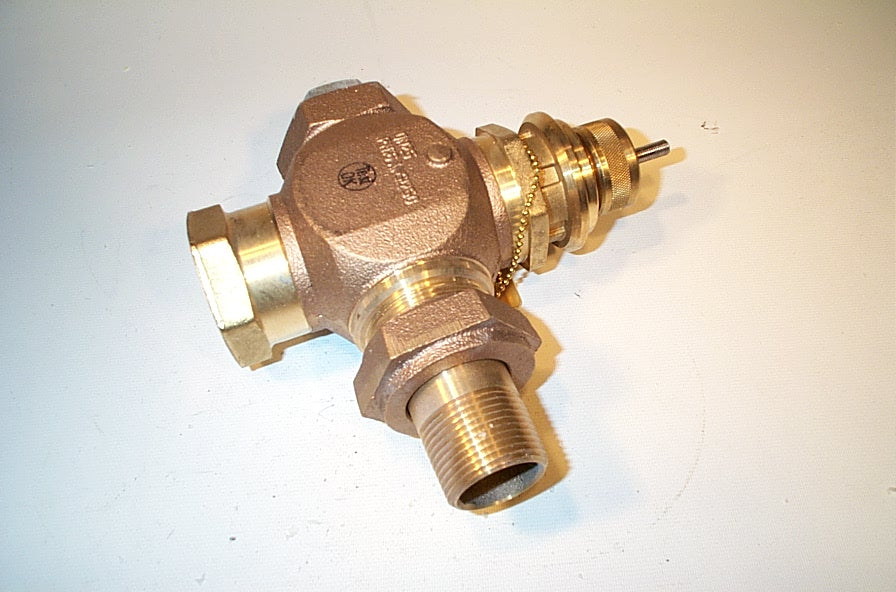

Johnson Controls VG7551NT+3008E Globe Valve Assembly 2 Way 1 in.

Product Description

The Johnson Controls VG7551NT+3008E is a two-way globe valve assembly designed for HVAC applications. This product includes features that enhance its usability in various settings. It provides effective control over the flow of water and steam within HVAC systems.

• Union angle design for easy installation.
• 11.6 Cv for optimal flow characteristics.
• Pneumatic actuator for reliable performance.

Product Highlights

This valve is built to handle a range of services, including hot water, chilled water, and glycol solutions.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7551NT+3008E

Technical Specifications

• Body Material: Bronze
• Stem Material: Stainless Steel
• Disk Seat Material: Brass against molded elastomeric
• Pressure Rating: Static pressure rating of ANSI Class 250
• Closeoff Pressure: 42 psig
• Operating Conditions: 35 F to 248 F (2 C to 120 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
• Flow Characteristic: Equal percentage
