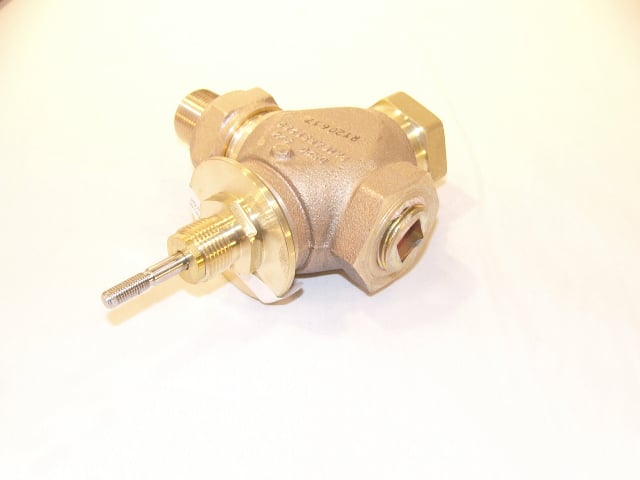

Johnson Controls VG7551LT+3008D Series VG7000 Brass Trim Globe Valve with V-3000-8012 Exposed Pneumatic Actuator 4-8 psig Spring Range

Product Description

The Johnson Controls VG7551LT+3008D is a Series VG7000 Brass Trim Globe Valve equipped with a Model V-3000-8012 Exposed Pneumatic Actuator. This valve is designed for the control of hot or chilled water or 38 psig saturated steam. The fluid temperature ranges from 35 to 284 degrees Fahrenheit (2 to 140 degrees Celsius), making it versatile for various HVAC applications. The valve body features a static pressure rating of ANSI Class 250, ensuring durability and effectiveness in high-pressure environments. It is suitable for both factory and field assembly and can be fitted with an optional V-9502-90 Positioner.

• Rugged actuator die-cast enclosure
• Fits VG7000 Series valves from 1/2 through 2 inches
• Control hot or chilled water and steam

Product Highlights

This valve controls the flow of hot or chilled water and steam, making it ideal for HVAC systems. It is designed for both factory and field assembly and supports an optional positioner for enhanced control.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7551LT+3008D
• Valve Type: Globe Valve
• Actuator Model: V-3000-8012
• Pressure Rating: 38 psig saturated steam
• Temperature Range: 35 to 284 degrees Fahrenheit (2 to 140 degrees Celsius)
• Static Pressure Rating: ANSI Class 250

Technical Specifications

• Brand: Johnson Controls
• MPN: VG7551LT+3008D
• Product Type: Valve
• Material: Brass Trim
• Series: VG7000
• Model: V-3000-8012
• Spring Range: 4-8 psig
• Positioner: Optional V-9502-90
