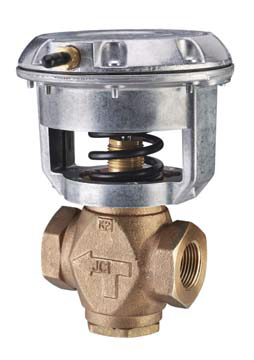

Johnson Controls VG7551LT+3003E Brass Globe Valve 3/4 inch 7.3Cv

Product Description

The Johnson Controls VG7551LT+3003E is a brass globe valve designed to control the flow of hot or chilled water and 38 psig saturated steam. It features a V-3000 enclosed pneumatic actuator for reliable operation.

• Controls temperature fluid from 35 to 284 degrees Fahrenheit
• ANSI Class 250 static pressure rating
• Compatible with optional V-9502-90 Positioner for enhanced control

Product Highlights

This valve is suited for both factory and field assembly, offering flexibility in installation and maintenance. Its rugged, die-cast actuator enclosure ensures durability and performance over time.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7551LT+3003E

Technical Specifications

• Valve Size: 3/4 inch
• Flow Coefficient (Cv): 7.3
• Spring Range: 9-13 psig
• Maximum Inlet Pressure: 38 psig
• Temperature Range: 35 to 284 degrees Fahrenheit
