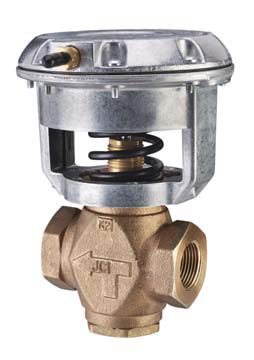

Johnson Controls VG7551ET3008BP Globe Valve Assembly 2 Way 1/2 in.

Product Description

The Johnson Controls VG7551ET3008BP is a globe valve assembly designed for HVAC control systems. This product features a two-way operation and is suitable for a half-inch connection.

• Union angle with a flow coefficient rating of 1.8 Cv.
• Constructed with a bronze body and stainless steel stem.
• Pneumatic actuator with a 1/8 inch NPT barbed fitting for air connection.

Product Highlights

This globe valve assembly is designed for effective flow control in various HVAC applications, ensuring reliable performance.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7551ET+3008BP

Technical Specifications

• Housing: Die-Cast Aluminum
• Service: Hot Water, Chilled Water, 50/50 Glycol Solutions, and Steam for HVAC Systems
• Closeoff Pressure: 365 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F to 248 F (2 C to 120 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
