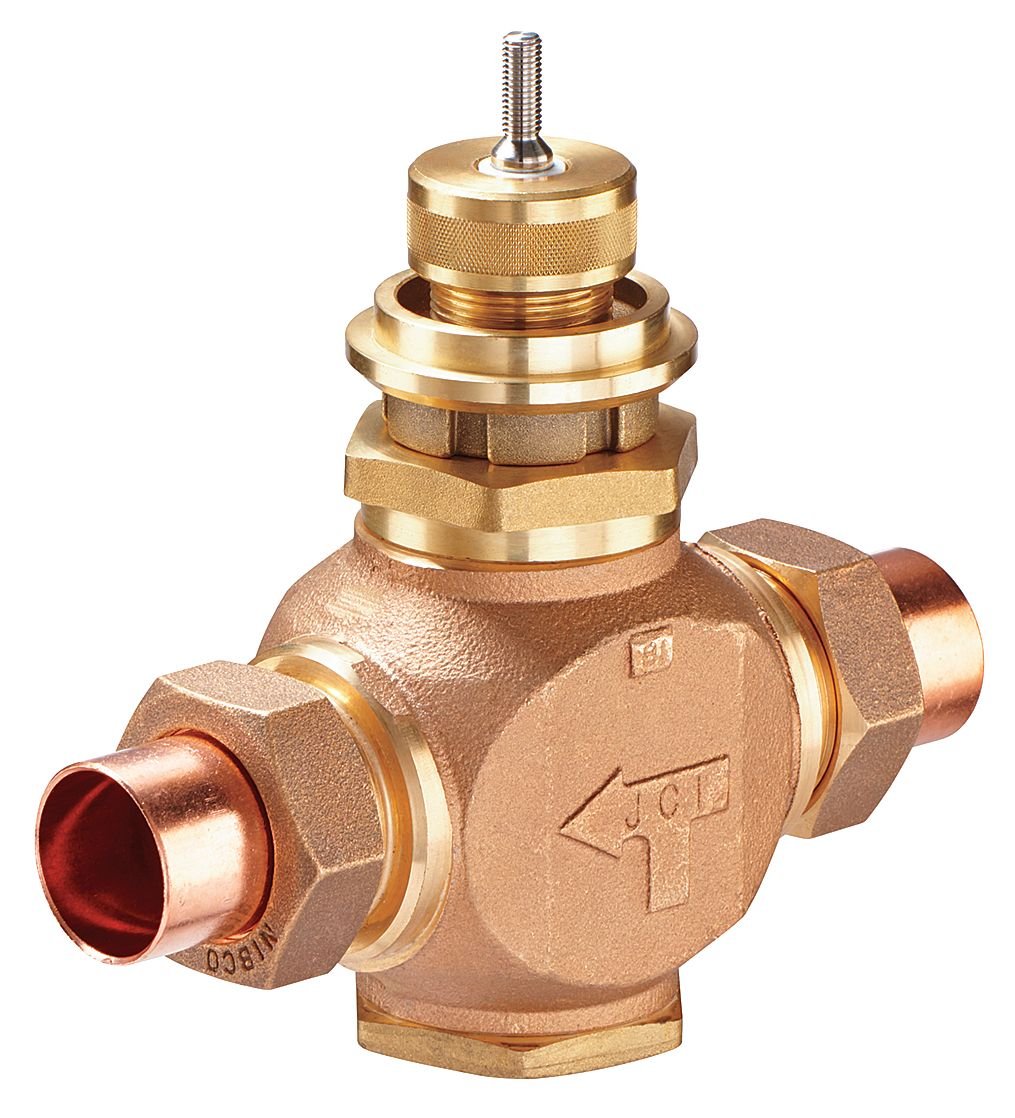

Johnson Controls VG7451GT Globe Valve 2-Way NC 0.5 Inch Union

Product Description

The Johnson Controls VG7451GT Series VG7000 Bronze Globe Valve is designed for accurate regulation of water or steam flow in HVAC systems. This two-way push-down-to-open valve features brass trim and a union globe end connection. Suitable for both electric and pneumatic actuators, it is available in normally open, normally closed, and three-way mixing configurations.

• Size ranges from 1/2 inch to 2 inches with various electric and pneumatic actuators
• ANSI Class 250 compliant
• Tight shutoff for occupant comfort and energy conservation

Product Highlights

The Johnson Controls VG7451GT ensures reliable performance in regulating water and steam flow in HVAC systems. Its tight shutoff and ANSI Class 250 compliance provide energy efficiency and durability.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7451GT

Technical Specifications

• Valve Design: 2-Way
• Body Material: Bronze
• Trim Material: Brass
• Connection Size: 1/2 inch
• Connection Type: Union
• Configuration: Normally Closed
• Max. Water Temp.: 284 degrees F
• Safe Working Steam Pressure: 38 psi
• Safe Working Water Pressure: 308 psi
• Coefficient of Volume: 4.6
• For Use With: M9000 Series Actuators and Pneumatic Actuators
• Height: 4.75 inches
• Width: 5.31 inches
• Depth: 3.75 inches
