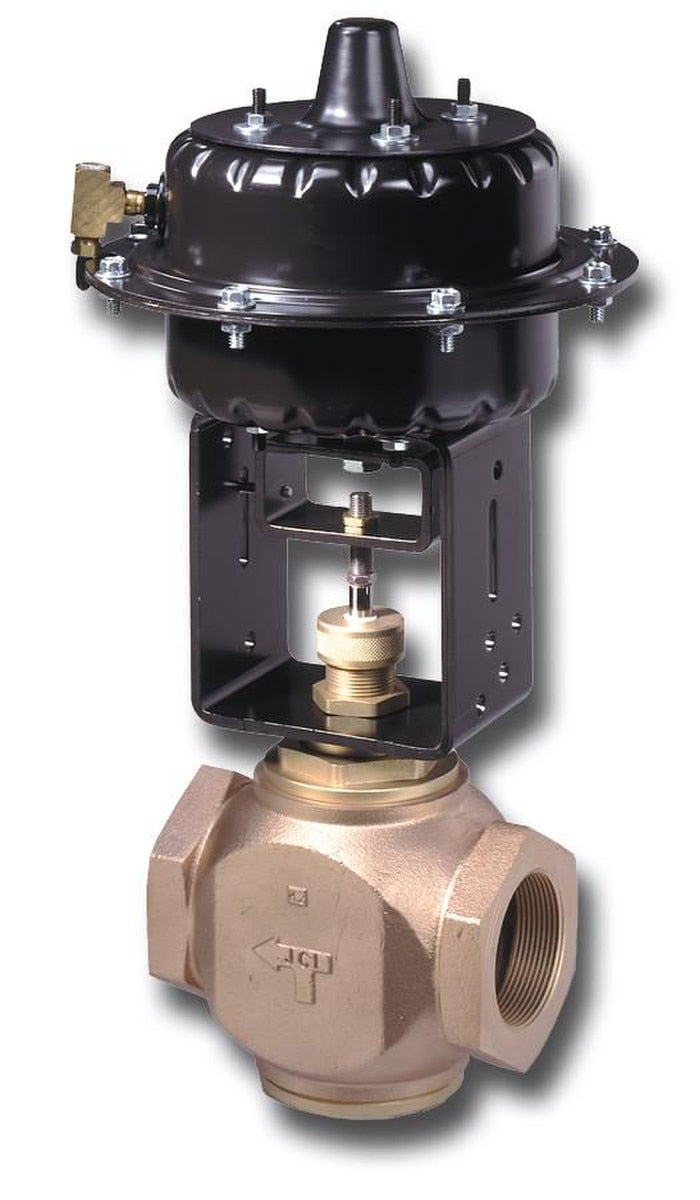

Johnson Controls VG7443ST+823E01 Globe Valve Assembly, 2 Way 2 in. 46.2 Cv

Product Description

The JOHNSON CONTROLS VG7443ST+823E01 is a 2-way, 2-inch globe valve assembly with a 46.2 Cv. It features a bronze body, stainless steel stem, and brass against a molded elastomeric disk seat. The valve includes a pneumatic actuator and a barbed fitting for a 1/4 inch O.D. polytubing air connection, operating between 9 to 13 psig.

• Valve Body Static Pressure Rating: ANSI Class 250
• Factory Or Field Assembly
• Optional V-9502-90 Positioner

Product Highlights

This valve is designed for hot water, chilled water, 50/50 glycol solutions, and steam HVAC systems. It has a die-formed carbon steel housing coated with a corrosion-resistant finish.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG7443ST+823E01
• Country of Origin: Italy

Technical Specifications

• Housing: Die-Formed Carbon Steel Coated With Corrosion-Resistant Finish
• Service: Hot Water, Chilled Water, 50/50 Glycol Solutions, And Steam For HVAC Systems
• Closeoff Pressure: 37 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F To 284 F (2 C To 140 C)
• Actuator Operating Conditions: -20 F To 150 F (-29 C To 66 C)
• Brand: Johnson Controls
• MPN: VG7443ST+823E01
• Manufacturer: Johnson Controls
• CV: 46.2
• Trim: Stainless Steel
• Actuator: 823E01
• Assembly: Assembly
• Pipe Size: 2 in
• Connection: NPT
• Valve Type: 2-Way
• Power Supply: Pneumatic
• Spring Range: 9-13 PSI
• Valve Number: VG7443ST
• Fail Safe Position: Normally Closed
