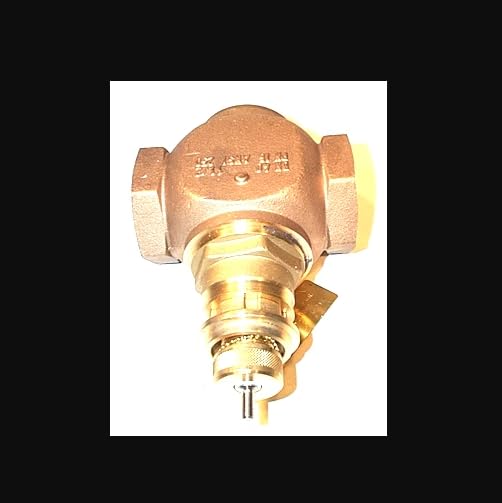

Johnson Controls VG7443RT+823D00 Series VG7000 Globe Valve Stainless Steel Trim with Pneumatic Actuator

Product Description

The Johnson Controls VG7000 Series Globe Valve, model VG7443RT+823D00, is engineered to control either hot or chilled water, or up to 100 psig saturated steam. It integrates a robust pneumatic actuator, ensuring reliable operation in industrial environments.

• Features spring-loaded PTFE and elastomer V-rings for durable sealing.
• Supports maximum supply air pressure of 25 psig (172 kPa).
• Operates efficiently within fluid temperatures from 35 to 338 degrees Fahrenheit (2 to 170 degrees Celsius).

Product Highlights

This valve comes with ANSI Class 250 static pressure rating, ideal for rigorous use in commercial and industrial settings. It can also accommodate the V-9502-95 Positioner by adjusting the code number suffix from 00 to 01, enabling enhanced functionality.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7443RT+823D00

Technical Specifications

• Valve Type: Globe Valve
• Material: Stainless Steel Trim
• Actuator Type: Pneumatic, MP82 series
• Supply Air Pressure Maximum: 25 psig (172 kPa)
• Fluid Temperature Range: 35 to 338°F (2 to 170°C)
• Steam Pressure Capability: Up to 100 psig
• Pressure Rating: ANSI Class 250
