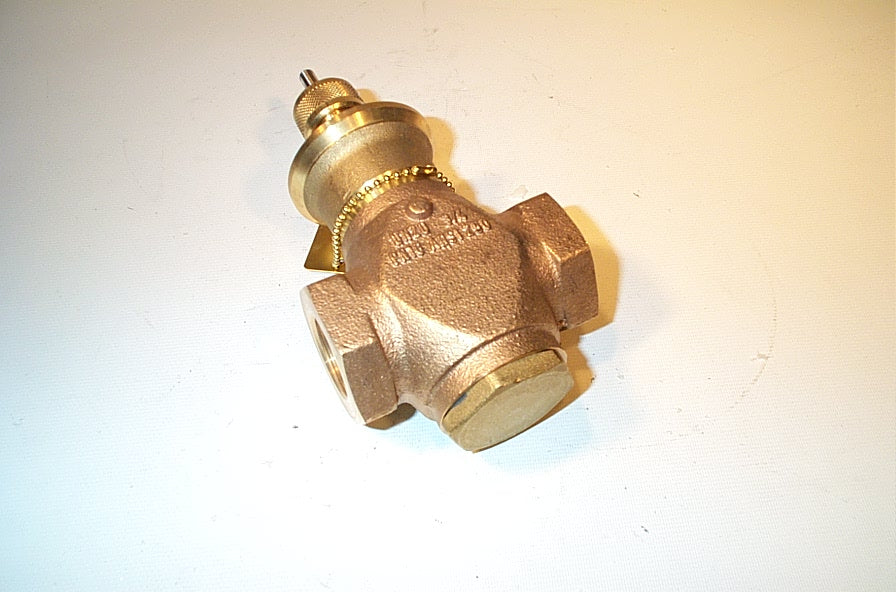

Johnson Controls VG7443LT+3003E Globe Valve Assembly 2 Way 3/4 in.

Product Description

The Johnson Controls globe valve assembly, model VG7443LT+3003E, is designed for reliable HVAC applications. This two-way valve is made with a bronze body and features a stainless steel stem and seat. It offers easy installation and connection with a 1/8 inch NPT barbed fitting for polytubing air lines.

• Spring-loaded PTFE and elastomer V-rings for long-lasting sealing
• Static pressure rating of ANSI Class 250
• Versatile for hot water, chilled water, and steam applications

Product Highlights

The valve operates efficiently within a temperature range of thirty-five degrees Fahrenheit to three hundred thirty-eight degrees Fahrenheit. The actuator can function between minus twenty degrees Fahrenheit and one hundred fifty degrees Fahrenheit. This adaptability makes it suitable for various HVAC systems.

Product Information

Standard Information

• Brand: Johnson Controls
• Manufacturer Part Number: VG7443LT+3003E

Technical Specifications

• Housing: Die-Cast Aluminum
• Service: Hot Water, Chilled Water, 50/50 Glycol Solutions, and Steam for HVAC Systems
• Closeoff Pressure: 75 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F to 338 F (2 C to 170 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
