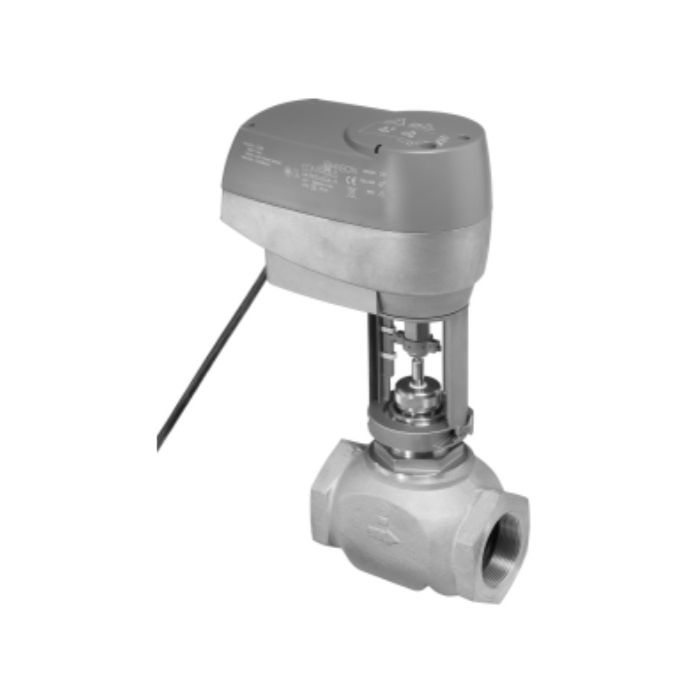

Johnson Controls VG7443ET+72CHGC Globe Valve Assembly 2 Way 1/2 in.

Product Description

The Johnson Controls VG7443ET+72CHGC is a globe valve assembly designed for effective control in HVAC systems. This two-way valve features a half-inch connection and is built to handle varying temperatures and pressures. Its rugged construction ensures reliability over time.

• NPT connection and 1.8 Cv flow coefficient
• Bronze body with stainless steel stem and seat
• Includes an electric actuator with a 180 in-lb spring return

Product Highlights

This valve meets the requirements of the American Society of Mechanical Engineers (ASME) B16.15 Class 250, ensuring high standards of safety and efficiency.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7443ET+72CHGC

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot water, chilled water, 50/50 glycol solutions, and 38 psig saturated steam
• Auxiliary Switch: 2 x SPDT
• Closeoff Pressure: 308 psig
• Power Consumption: 6 VA
• Flow Characteristic: Equal percentage
• Operating Conditions: 35 F to 338 F (2 C to 170 C)
• Electrical Connection: 48 in. UL 758 Type AWM halogen-free cable with 18 AWG conductors
• Actuator Operating Conditions: 23 F to 121 F (-5 C to 55 C)
