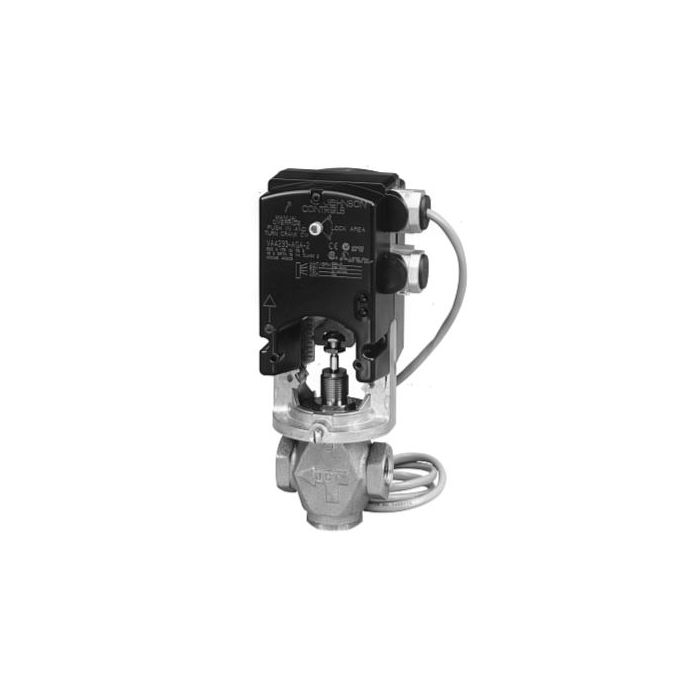

Johnson Controls VG7443ET+423GGC Globe Valve Assembly 2 Way 1/2 in.

Product Description

The Johnson Controls VG7443ET+423GGC is a globe valve assembly designed for HVAC systems. This two-way valve is compatible with hot water, chilled water, and glycol solutions.

• Valve body static pressure rating: ANSI Class 250
• Features direct mount electric actuator with a spring return.
• Includes an auxiliary switch for enhanced control.

Product Highlights

Utilized in HVAC control, this valve allows for efficient temperature regulation.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7443ET+423GGC

Technical Specifications

• Body Material: Bronze
• Stem and Seat Material: Stainless Steel
• Flow Coefficient (Cv): 1.8
• Power Consumption: 12 VA
• Operating Conditions: 35°F to 250°F (2°C to 121°C)
• Electrical Connection: Eighteen inches cable with eighteen AWG wire leads
• Actuator Operating Conditions: -4°F to 122°F (-20°C to 50°C)
• Auxiliary Switch: 2 x SPDT
• Closeoff Pressure: 224 psig
