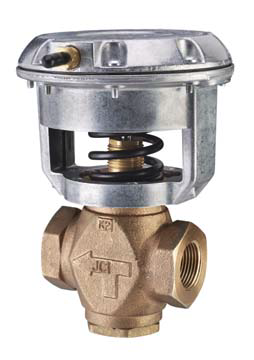

Johnson Controls VG7443ET+3008B Globe Valve Assembly 2 Way 1/2 in.

Product Description

The Johnson Controls VG7443ET+3008B is a globe valve assembly that operates in a two-way configuration. This valve has a half-inch NPT connection and provides reliable flow control in HVAC systems.

• NPT connection with a static pressure rating of ANSI Class 250
• Suitable for various fluid services including hot water and chilled water
• Pneumatic actuator with a 1/8-inch NPT barbed fitting

Product Highlights

This valve is designed for durability and efficiency with a bronze body and stainless steel components.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7443ET+3008B
• Minimum Order Quantity: 1

Technical Specifications

• Housing: Die-Cast Aluminum
• Service: Hot Water, Chilled Water, 50/50 Glycol Solutions, And Steam For HVAC Systems
• Closeoff Pressure: 75 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F To 338 F (2 C To 170 C)
• Actuator Operating Conditions: -20 F To 150 F (-29 C To 66 C)
