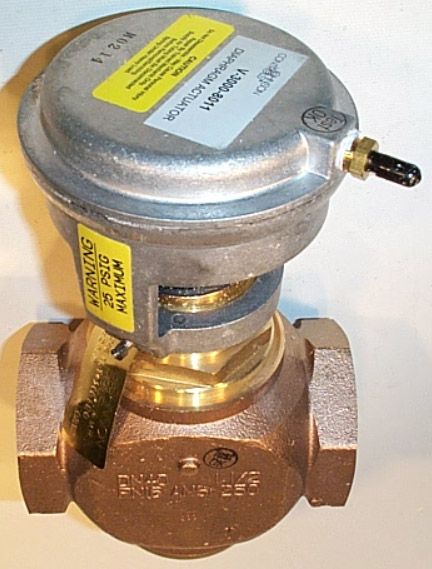

Johnson Controls VG7441RT+3008B - 1-1/2 NPT Bronze Pneumatic Valve

Product Description

The Johnson Controls VG7441RT+3008B is a pneumatic, normally-closed, two-way valve. The valve features an exposed yoke design and connects with a 1-1/2 inch NPT. It operates within a pressure range of three to six psi and allows a maximum flow of twenty-eight point nine CV.

• Designed for hot or chilled water and saturated steam
• Available with optional installation of V-9502-90 positioner
• Body material is bronze for durability

Product Highlights

This valve is suitable for various applications including heating and cooling systems. Its robust construction ensures reliability in both factory or field assemblies.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7441RT+3008B

Technical Specifications

• Model: VG7000
• Valve Size: 1-1/2 inch
• Valve Connection: NPT
• Piping Configuration: Straight
• Body Material: Bronze
• Valve Application: Steam, Water
• Max Pressure: 15 psi WSP, 125 psi WOG
• Weight: 12.00 lbs
