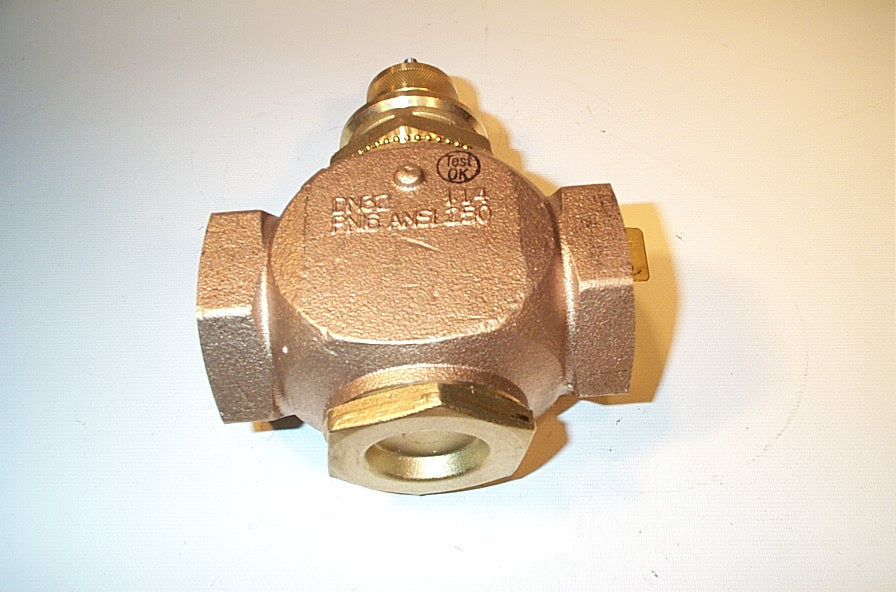

Johnson Controls VG7441PT+822D01 Globe Valve Assembly, 2 Way 1-1/4 in

Product Description

The Johnson Controls VG7441PT+822D01 is a globe valve assembly designed for HVAC systems. It features a two-way operation for efficient flow control. This valve is suitable for various applications, including hot water and chilled water systems.

• Pressure rating: ANSI Class 250
• Actuator operating conditions range: -20°F to 150°F
• Compatible with a wide range of fluids: including water and glycol solutions

Product Highlights

This globe valve assembly is engineered for durability and reliability in HVAC applications.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7441PT+822D01

Technical Specifications

• Valve Body Static Pressure Rating: ANSI Class 250
• Closeoff Pressure: 55 psig
• Housing Material: Die-formed carbon steel with corrosion-resistant finish
• Service Types: Hot water, chilled water, 50/50 glycol solutions, and steam for HVAC systems
• Flow Characteristic: Equal percentage
• Operating Conditions: 35°F to 284°F (2°C to 140°C)
• Actuator Operating Conditions: -20°F to 150°F (-29°C to 66°C)
