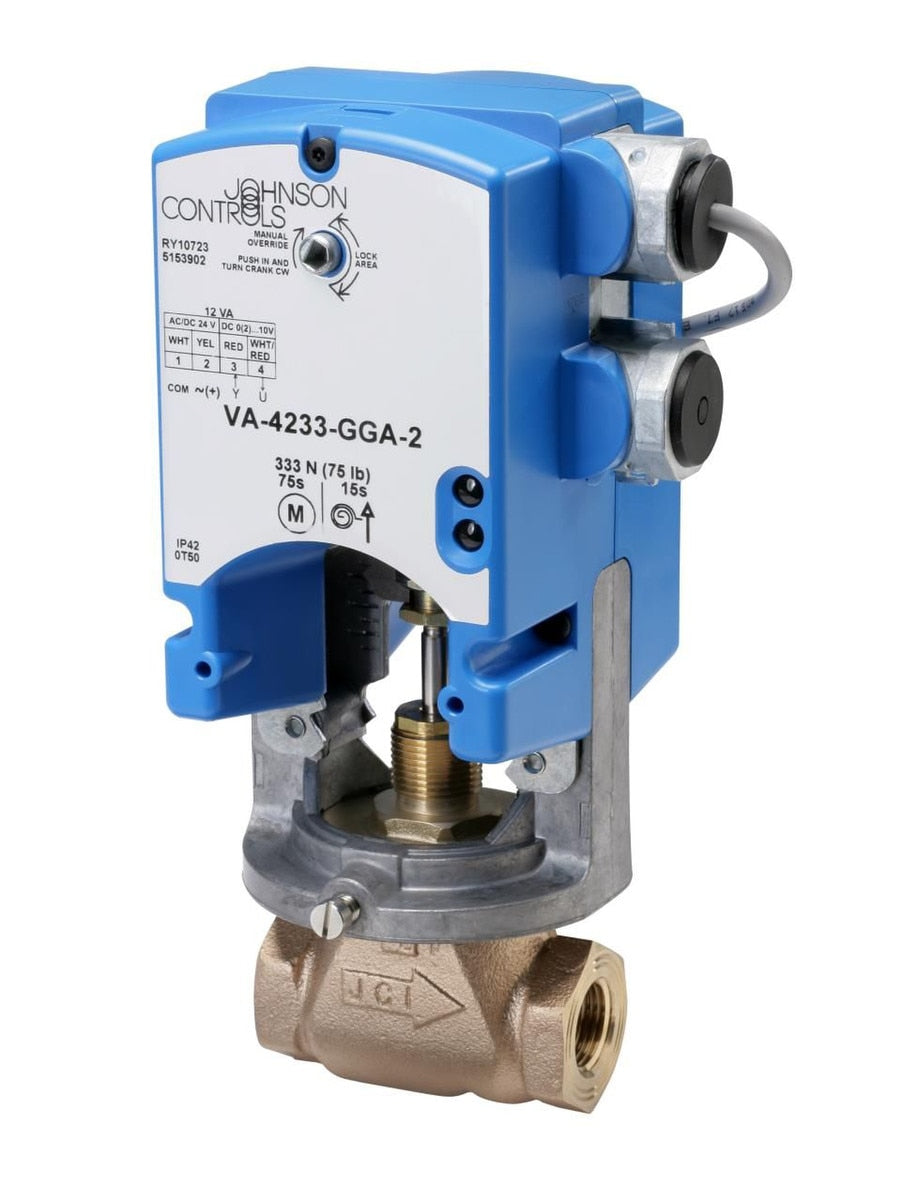

Johnson Controls VG7441PT+423GGA Globe Valve Assembly 2 Way 1-1/4 in

Product Description

The Johnson Controls VG7441PT+423GGA is a globe valve assembly designed for HVAC systems. This two-way valve features a one and one-fourth inch port size and operates with a power consumption of two watts. It has a flow rate of 18.5 Cv, ideal for tasks requiring precise fluid control.

• NPT connection and bronze body
• Stainless steel stem with elastomeric disk seat
• Directly mounts to an electric actuator with a spring return

Product Highlights

This valve is suitable for hot water, chilled water, and glycol solutions. It is engineered for durability in demanding environments.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7441PT+423GGA

Technical Specifications

• Power Consumption: 12 VA
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F to 250 F (2 C to 121 C)
• Closeoff Pressure: 38 psig
• Electrical Connection: 18 in. cable with 20 AWG wire leads
• Actuator Operating Conditions: 32 F to 122 F (0 C to 50 C)
• Housing: NEMA 2, IP42
• Service: Hot Water, Chilled Water, Glycol Solutions, and Steam for HVAC Systems
