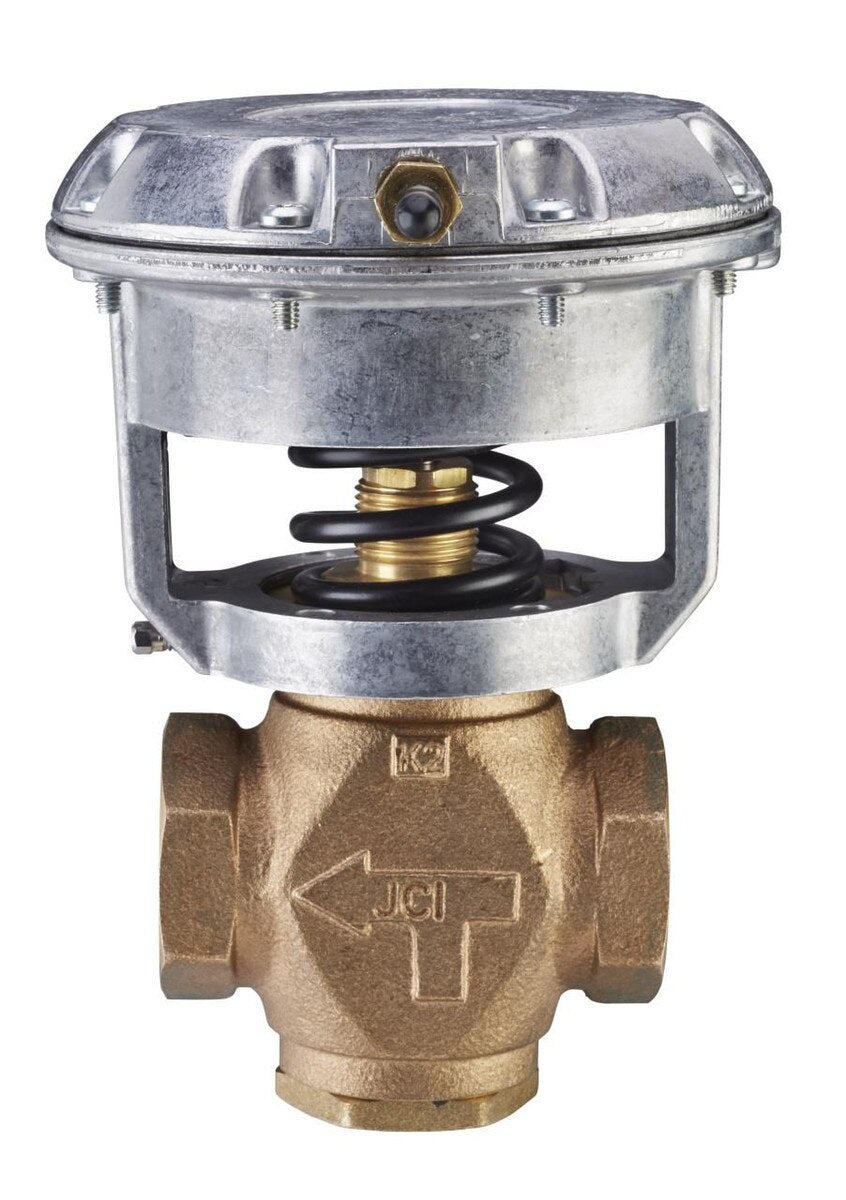

Johnson Controls VG7441NT+3008EP Globe Valve Assembly, 2 Way 1 in. Replacement MPN

Product Description

The Johnson Controls VG7441NT+3008EP is a globe valve assembly designed for two-way service with a one-inch connection. It features a robust bronze body, stainless steel stem, and a molded elastomeric disk seat for reliable performance. This assembly is suitable for HVAC systems, particularly in applications involving hot water, chilled water, glycol solutions, and steam.

• Pressure rating: ANSI Class 250
• Flow coefficient: 11.6 Cv
• Operating conditions: 35 F to 248 F

Product Highlights

The VG7441NT+3008EP valve assembly is built for durability and efficiency, ensuring effective control of fluid flow in HVAC applications.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7441NT+3008EP

Technical Specifications

• Housing: Die-Cast Aluminum
• Service: Hot Water, Chilled Water, Glycol Solutions, Steam
• Closeoff Pressure: 65 psig
• Flow Characteristic: Equal Percentage
• Actuator Operating Conditions: -20 F to 150 F
• Spring Range: 9 to 13 psig
