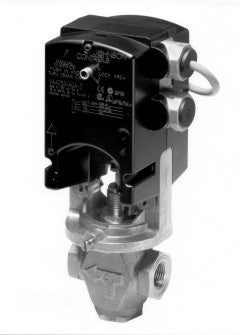

Johnson Controls VG7441GT+423BGC Globe Valve Assembly 2 Way 1/2 in.

Product Description

The Johnson Controls VG7441GT+423BGC is a globe valve assembly designed for HVAC systems. This two-way valve is suitable for use with hot water, chilled water, glycol solutions, and steam. It features a bronze body with a stainless steel stem and a molded elastomeric disk seat. The direct mount electric actuator provides reliable operation in various conditions.

• NPT connection with a flow coefficient of 4.6 Cv.
• Spring return design and operates at 20 to 30 VAC.
• Static pressure rating of ANSI Class 250.

Product Highlights

This valve assembly is designed for durability and efficiency. It can handle a close-off pressure of 173 psig and operates effectively in temperatures from 35 F to 250 F.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7441GT+423BGC

Technical Specifications

• Power Consumption: 12 VA
• Actuator Operating Conditions: 32 F to 122 F (0 C to 50 C)
• Flow Characteristic: Equal Percentage
• Electrical Connection: 18 inch cable with 18 AWG wire leads
• Auxiliary Switch: 2 x SPDT
• Service: Hot water, chilled water, glycol solutions, and steam
• Closeoff Pressure: 173 psig
• Housing: NEMA 2, IP42
