Product Description

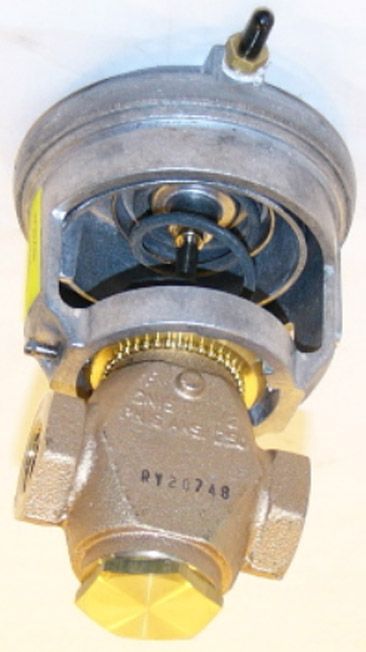

The Johnson Controls VG7441GT+3008E is a globe valve assembly designed for HVAC applications. This two-way valve features a half-inch NPT connection and operates under a pressure range of nine to thirteen psi. It supports a flow capacity of four point six cubic feet per minute and utilizes a durable bronze body with a stainless steel stem, ensuring reliability over time.
- Size: 1/2 inch NPT
- Pressure Range: 9 to 13 psi
- Flow Capacity: 4.6 Cv
Product Highlights
This valve is suitable for hot and chilled water systems as well as steam. It is designed for easy installation in tight spaces due to its compact construction. The valve body has a static pressure rating of ANSI Class 250 and is equipped with a pneumatic actuator.
Product Information
Standard Information
-
Brand: Johnson Controls
-
MPN: VG7441GT+3008E
Technical Specifications
-
Item Number: VG7441GT+3008E
-
Body Material: Bronze
-
Flow Characteristic: Equal Percentage
-
Max Pressure: 15 psi WSP, 125 psi WOG
-
Operating Conditions: 35 F to 248 F (2 C to 120 C)
-
Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
