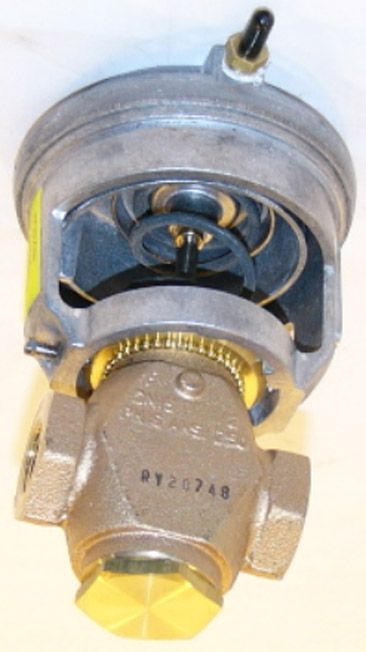

Johnson Controls VG7441GT+3008B Globe Valve Assembly 2 Way 1/2 in.

Product Description

The Johnson Controls VG7441GT+3008B is a 2-way globe valve assembly designed for HVAC applications. It features a half-inch NPT connection and is ideal for controlling the flow of steam and water. The valve uses a pneumatic actuator and has a flow capacity of 4.6 Cv. It operates within a pressure range of 3 to 6 psi, making it suitable for various system demands.

• Body Material: Bronze
• Static Pressure Rating: ANSI Class 250
• Operating Conditions: Suitable for hot water, chilled water, glycol solutions, and steam.

Product Highlights

This globe valve assembly is designed for durability and efficiency within HVAC systems. It offers precise control in balancing and regulating flow.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7441GT+3008B

Technical Specifications

• Valve Size: 0.5 inches
• Valve Connection: NPT
• Max Pressure: 15 psi WSP, 125 psi WOG
• Weight: 3.50 pounds
• Flow Characteristic: Equal Percentage
• Closeoff Pressure: 49 psig
• Operating Conditions: 35 F To 248 F (2 C To 120 C)
• Actuator Operating Conditions: -20 F To 150 F (-29 C To 66 C)
