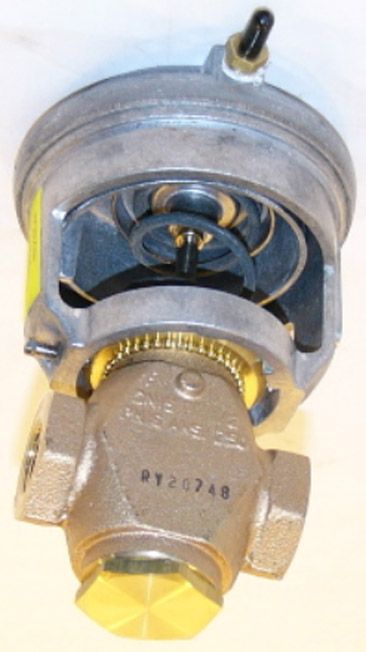

Johnson Controls VG7441ET+3008B Pneumatic Valve 1/2 Inch NPT Bronze Replacement VG7441ET+3008B

Product Description

The Johnson Controls model VG7441ET+3008B is a 1/2 inch NPT bronze pneumatic valve, well-suited for controlling water and steam in HVAC systems. This 2-way, normally-closed valve integrates a sophisticated pneumatic actuator and operates within a pressure range of 3-6 psi, offering precise flow control with a maximum rate of 1.8 CV.

• Designed for robust performance in both hot and chilled water applications, as well as low-pressure steam systems.
• Features a rugged, die-cast actuator enclosure specifically tailored for Johnson's VG7000 Series valves.
• Engineered for straightforward installation and low-maintenance operation, enhancing system reliability and longevity.

Product Highlights

The valve benefits from Johnson Controls' durable construction, utilizing bronze for the valve body to ensure corrosion resistance and durability.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7441ET+3008B

Technical Specifications

• Valve Size: 1/2 inch
• Valve Connection: NPT
• Max Pressure: 15 psi WSP, 125 psi WOG
• Body Material: Bronze
• Valve Application: Steam, Water
• Piping Configuration: Straight
