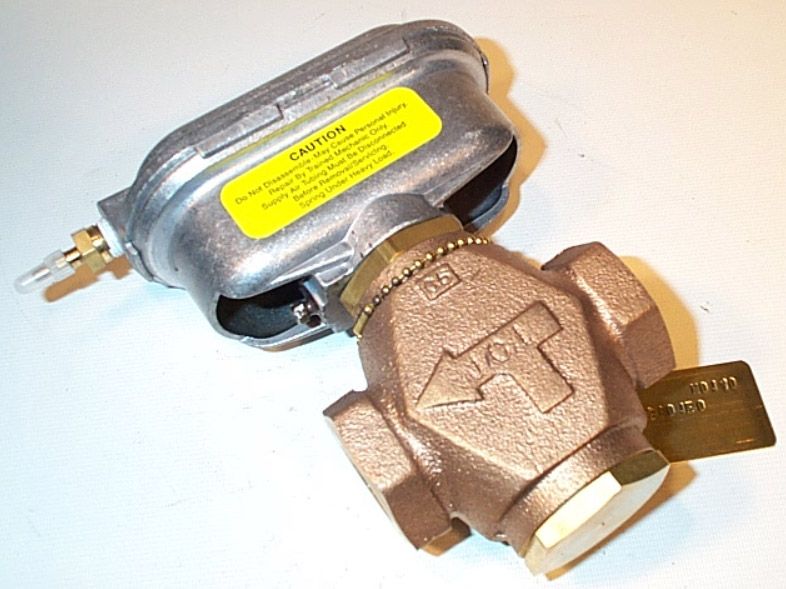

Johnson Controls VG7441ES+3801E Brass Trim Globe Valve 1/2 NPT with Pneumatic Actuator

Product Description

The Johnson Controls VG7441ES+3801E is a Brass Trim Globe Valve with a model V-3801 compact pneumatic actuator. It is ideal for controlling hot or chilled water or saturated steam up to 15 psig. The valve stem is made of stainless steel and the valve body has a static pressure rating of ANSI Class 250. The maximum supply air pressure is 25 psig, and the fluid temperature range is 35 to 248 degrees Fahrenheit.

• Bronze body material
• 1/2 NPT connection
• 9-13 psig spring range

Product Highlights

This valve fits in tight spaces, such as baseboard radiators and convectors. It is compact and easy to install.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7441ES+3801E
• Model: VG7000

Technical Specifications

• Valve Size: 1/2
• Valve Connection: NPT
• Piping Configuration: Straight
• Body Material: Bronze
• Valve Application: Steam, Water
• Max Pressure: 15 psi WSP, 125 psi WOG
• Weight: 3.10 lbs
