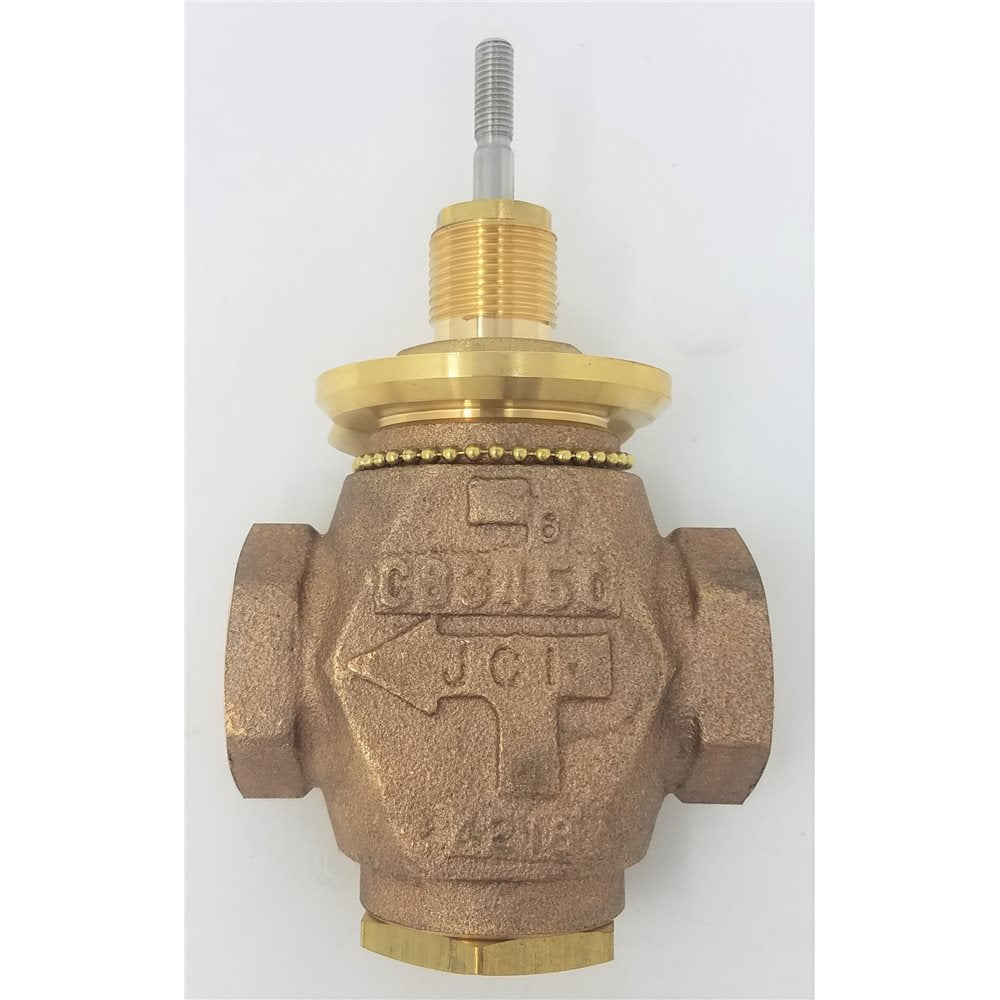

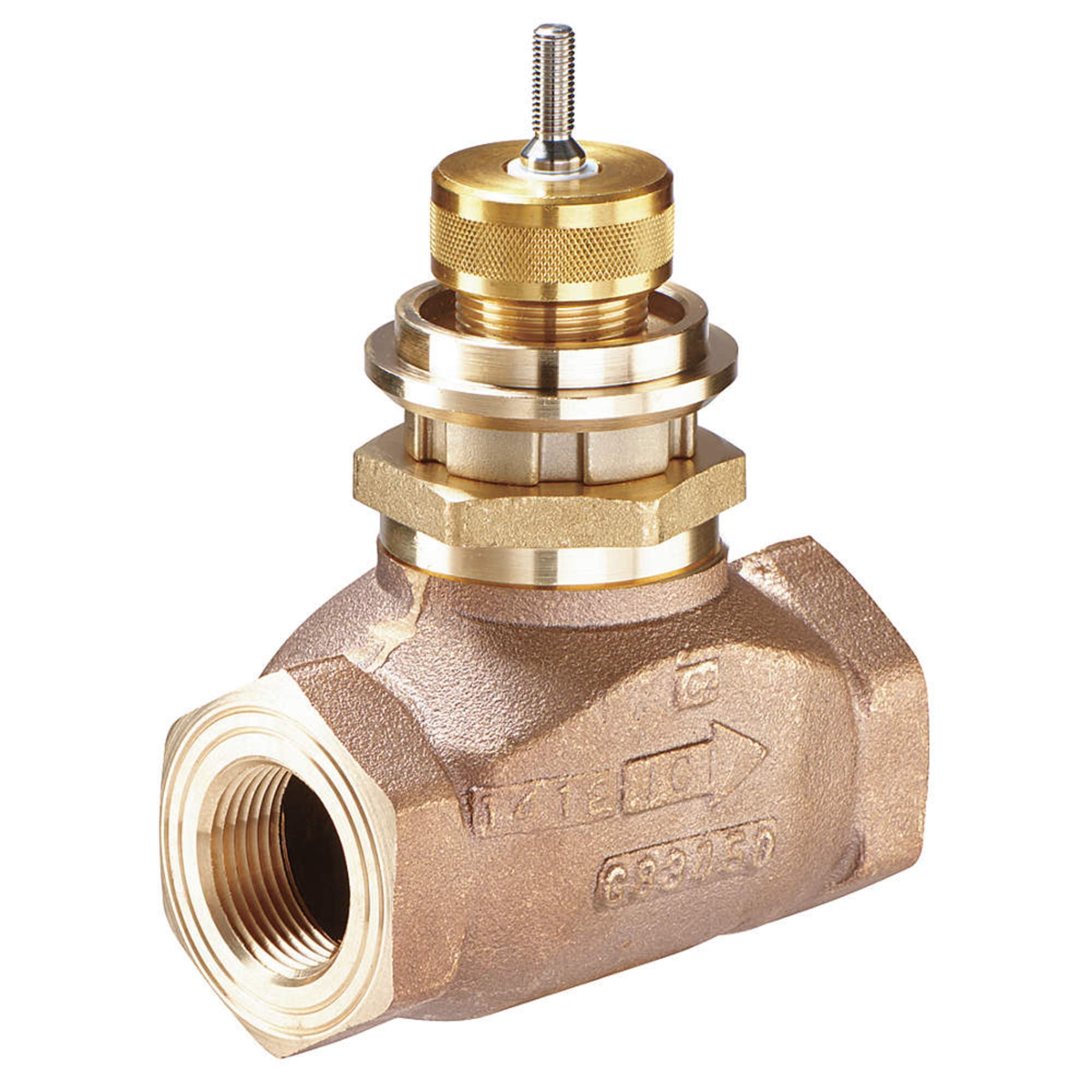

Johnson Controls VG7441CT Globe Valve, 2 Way, 1/2 in. 0.73 Cv

Product Description

The JOHNSON CONTROLS VG7441CT is a globe valve designed to regulate the flow of water and steam in HVAC systems. This 2-way valve features a bronze body, stainless steel stem, and brass trim. It is designed for use with hot water, chilled water, 50/50 glycol solutions, and steam. The valve complies with ANSI class 250 pressure/temperature standards.

• Valve Body Static Pressure Rating: ANSI Class 250
• Designed to regulate the flow of hot or chilled water, 50/50 glycol solution and steam in HVAC applications
• Linear flow characteristic

Product Highlights

This globe valve is ideal for regulating flow in HVAC systems, offering durability and precise control for efficient operation.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG7441CT
• Country of Origin: Mexico

Technical Specifications

• Service: Hot Water, Chilled Water, 50/50 Glycol Solutions, And Steam For HVAC Systems
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F To 248 F (2 C To 120 C)
• Size: 1/2"
• Material: Cast Bronze
• Connection Type: Threaded
• Flow Capacity (Cv): 0.73
• Brand: JOHNSON CONTROLS
• MPN: VG7441CT
• Depth: 1 5/8 in
• Width: 4 3/16 in
• Height: 4 3/4 in
• Includes: Valve Only
• For Use With: M9000 Series Actuators and Pneumatic Actuators
• Valve Design: 2-Way
• Trim Material: Brass
• Connection Size: 1/2 in
• Max. Water Temp.: 284 Degrees F
• Safe Working Steam Pressure: 38 psi
• Safe Working Water Pressure: 308 psi
• Assembly: Valve Only
• Pipe Size: 0.5 in
• Connection: NPT
• Valve Type: 2-Way
• Fail Safe Position: Normally Closed
• Manufacturer: Johnson Controls Inc
• Valve Size: 1/2"
• End Connection: NPT
• Cv: 0.73 CV
• Pattern: 2-way
• Product Series: VG7000 Globe Valves
• Family Series: Johnson Controls HVAC Valves, VG7000 Globe Valves Series
• Description: Valve 2-W Pdto Dn15
• Capacity: 0.73 Cv
• Max Static Pressure: 400 psi
• Body Pattern: Two-Way Normally Closed
• Valve Style: Globe
• Medium Temperature Range: 35-248 °F
• Comments: ANSI Class 250
