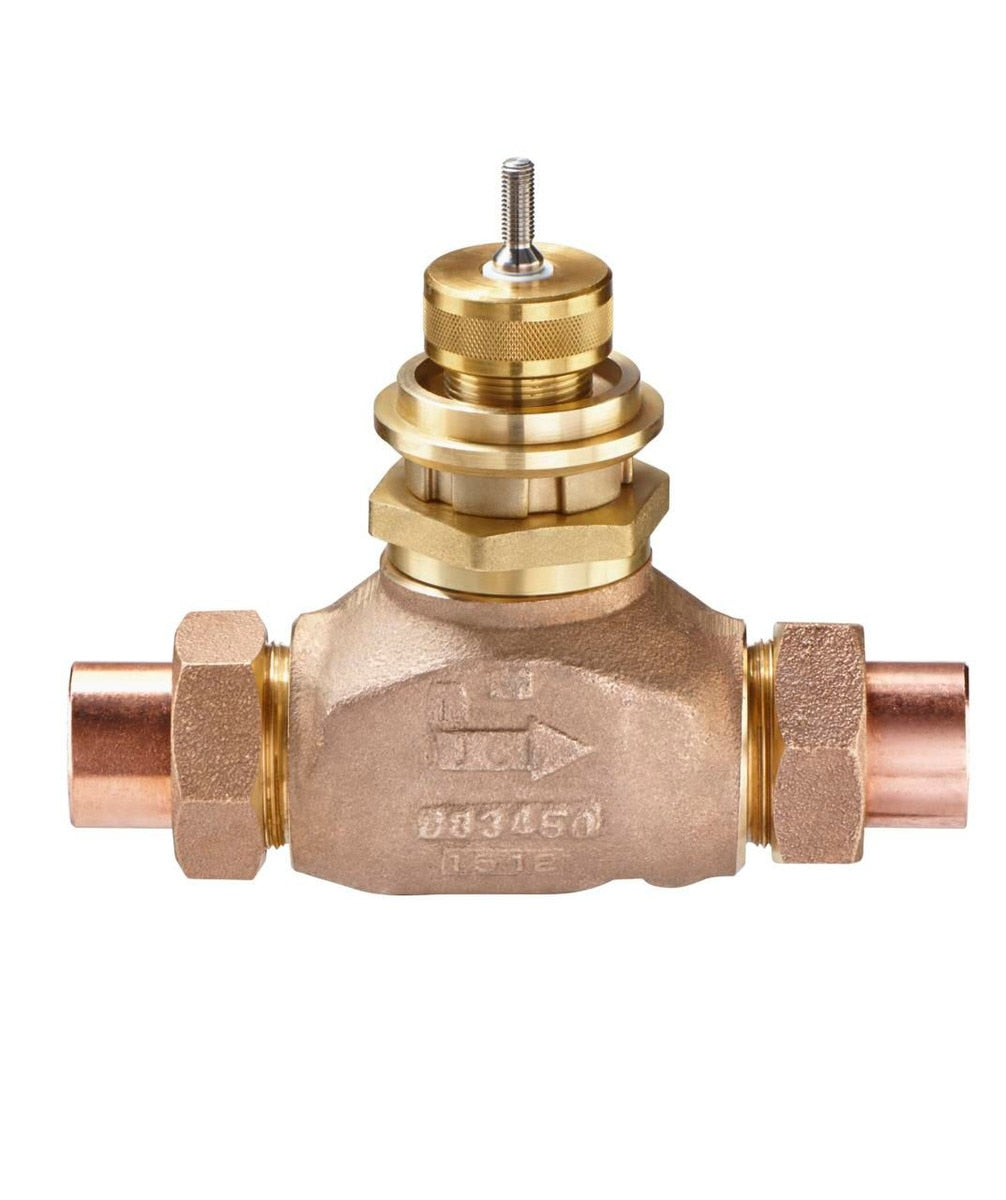

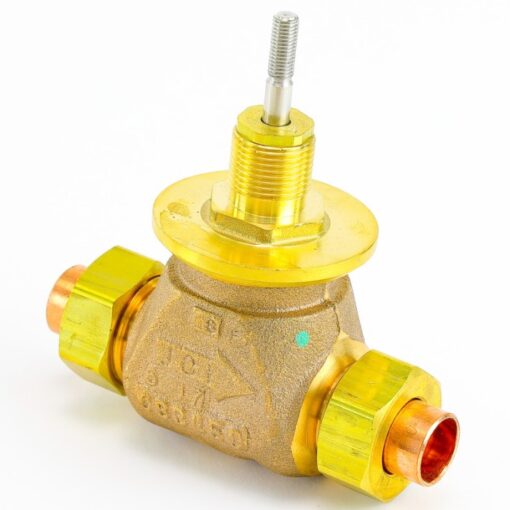

Johnson Controls VG7281ET Valve 1.8 Cv

Product Description

The Johnson Controls VG7281ET is a 2-Way 1/2" Cast Bronze Control Valve with Cv 1.8, designed for HVAC systems. It accurately regulates the flow of water or steam in response to a controller's demand. It features a bronze body, stainless steel stem, and brass trim.

• Valve Body Static Pressure Rating: ANSI Class 250
• Every valve tested for tight shutoff
• Equal percentage flow characteristic

Product Highlights

The Johnson Controls VG7281ET valve offers precise control and dependability for optimal performance in various systems.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG7281ET

Technical Specifications

• Service: Hot Water, Chilled Water, 50/50 Glycol Solutions, And Steam For HVAC Systems
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F To 248 F (2 C To 120 C)
• Item Number: VG7281ET
• Brand: Johnson Controls
• CV: 1.8
• Trim: Brass
• Assembly: Valve Only
• Pipe Size: 0.5 in
• Connection: Sweat
• Valve Type: 2-Way
• Valve Number: VG7281ET
• Fail Safe Position: Normally Open
• Leakage: Brass trim 0.01% of maximum flow per EN60534-4, Class IV; Stainless steel trim 0.05% of maximum flow
• Inherent flow characteristics: Equal percentage 2-way valves; Linear 3-way valves in compliance with EN 600534
• Rangeability: 25:1 at 0.25 0.25 0.25 1 KVS and 100:1 at 1.6 1.6 1.6 40 KVS. In accordance with EN 60534-2-4
• Maximum recommended operating pressure drop: 240 kPa for DN15 and DN32 240 kPa for DN15 and DN32 240 kPa for DN15 and DN32 200 kPa for DN40 to DN50
• Fluid temperature operating limits Valves with brass trim and V-3801 and VA-731x Actuators: 2 °C to 120 °C water /100 kPa Saturated Steam
• Fluid temperature operating limits Valves with brass trim and all other actuators: 2 °C to 140 °C water /260 kPa Saturated Steam
• Fluid temperature operating limits Valves with stainless steel trim: 2 to 170 °C /690 kPa Saturated Steam
• Manufacturer Part Number: VG7281ET+3008DP
• Manufacturer: Johnson Controls
• Product Series: VG7000 Pneumatic Control Valves
• Family Series: Johnson Controls HVAC Valves, VG7000 Pneumatic Control Valves Series
• Description: No1/2Usw1.8 W/P 4-8#
• Capacity: 1.8 Cv
• Connection Type: Sweat
• Max Static Pressure: 400 psi
• Body Pattern: Two-Way
• Valve Style: Control
• Medium Temperature Range: 35-248 °F
• Fail-Safe Mode: Spring Normally Open
• Comments: 4-8 psi Spring Range
