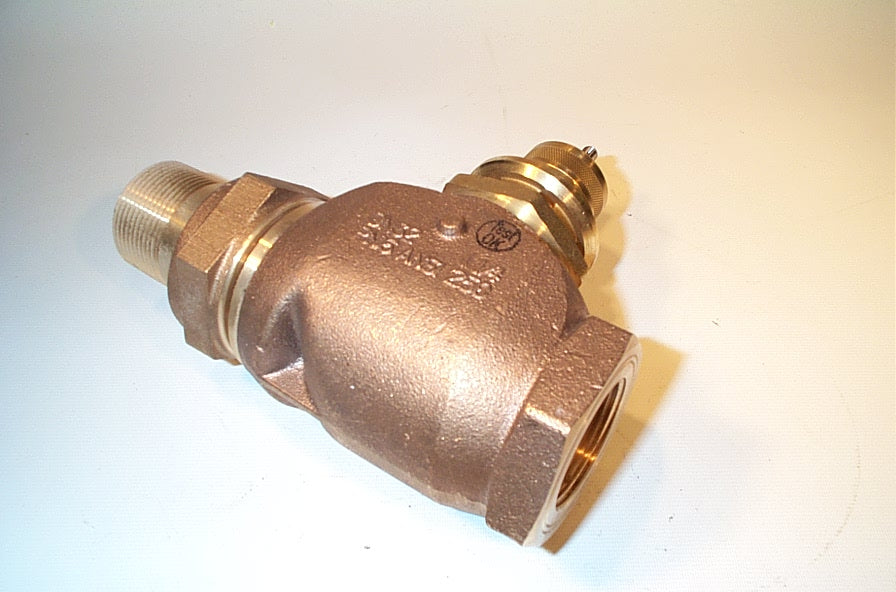

Johnson Controls VG7251PT+3008D Brass Trim Globe Valve Pneumatic Actuator

Product Description

The Johnson Controls Series VG7000 Model VG7251PT brass trim globe valve with V-3000-8012 exposed pneumatic actuator is engineered for precision temperature control in HVAC systems. This valve adjusts the flow of either hot or chilled water and up to 38 psig saturated steam. With a fluid temperature range from 35 to 284 degrees Fahrenheit and ANSI Class 250 static pressure rating, it's suitable for a wide range of applications.

• Designed for hot/chilled water and up to 38 psig saturated steam.
• Fluid temperature tolerance between 35 and 284 degrees Fahrenheit.
• ANSI Class 250 for high-static pressure environments.

Product Highlights

Featuring a rugged die-cast actuator enclosure, this valve ensures reliable operation and fits seamlessly with VG7000 Series valves ranging from 1/2 to 2 inches.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7251PT+3008D

Technical Specifications

• Type: Brass Trim Globe Valve
• Actuator: V-3000 Pneumatic
• Pressure Range: 4-8 psig
• Connection Size: 1.25 inches
• Control Type: Pneumatic
