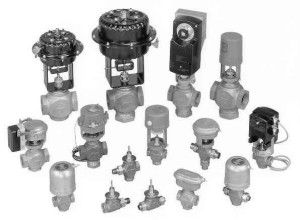

Johnson Controls VG7251PT+7152G Globe Valve Assembly, 2 Way 1-1/4 in

Product Description

The Johnson Controls VG7251PT+7152G is a globe valve assembly designed for controlling the flow in HVAC systems. This 2-way valve features an 18.5 Cv rating and is constructed with a bronze body and a stainless steel stem. It is equipped with a direct-coupled electric actuator capable of handling a torque of ninety inch-pounds with a non-spring return mechanism. The actuator operates on a voltage range of zero to ten VDC, offering proportional control.

• Magnetic clutch protects the gearing and ensures tight close-off.
• Valve body has a static pressure rating of ANSI Class 250.
• Suitable for hot water, chilled water, glycol solutions, and steam applications.

Product Highlights

This valve assembly is ideal for HVAC control components, especially in heating and cooling systems.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7251PT+7152G

Technical Specifications

• Power Consumption: 4.7 VA
• Operating Conditions: 35 F to 284 F (2 C to 140 C)
• Actuator Operating Conditions: 0 F to 140 F (-18 C to 60 C)
• Closeoff Pressure: 52 psig
• Flow Characteristic: Equal Percentage
• Electrical Connection: Screw terminals for 16 AWG maximum
• Housing: NEMA 2, IP42
• Service: Hot water, chilled water, 50/50 glycol solutions, and steam for HVAC systems
