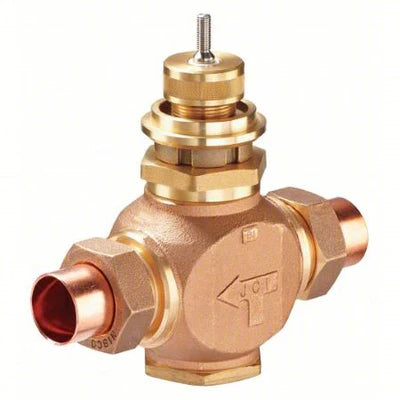

Johnson Controls VG7251LT+3003E Globe Valve Assembly, 2 Way 3/4 in.

Product Description

The Johnson Controls VG7251LT+3003E is a globe valve assembly designed for HVAC control systems. This 2-way valve features a bronze body and is suitable for applications involving hot water, chilled water, and steam. The valve operates effectively with a pneumatic actuator and includes a 1/8-inch NPT barbed fitting for polytubing. It has a flow coefficient (Cv) of 7.3, making it efficient in controlling fluid flow.

• Die-Cast Aluminum Housing
• Pressure Rating: ANSI Class 250
• Service for Hot and Chilled Solutions

Product Highlights

This valve assembly provides reliable operation with a close-off pressure of 69 psig and operates within a temperature range of thirty-five degrees Fahrenheit to two hundred forty-eight degrees Fahrenheit.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7251LT+3003E

Technical Specifications

• Housing: Die-Cast Aluminum
• Service: Hot Water, Chilled Water, Glycol Solutions, Steam
• Closeoff Pressure: 69 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F to 248 F
• Actuator Operating Conditions: -20 F to 150 F
