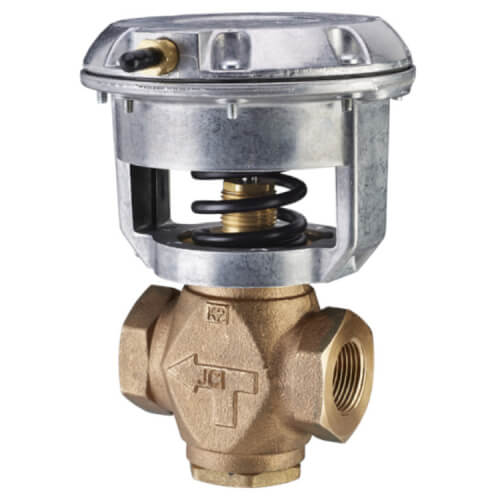

Johnson Controls VG7251CT+3008D Series VG7000 Globe Valve Brass Trim Pneumatic Actuator

Product Description

The Johnson Controls VG7251CT+3008D brass trim globe valve, equipped with a V-3000 pneumatic actuator, offers precise control over hot or chilled water and saturated steam with a pressure of up to 38 psig. The valve's body is rated at ANSI Class 250, perfect for both factory and field assembly. This model is also compatible with the optional V-9502-90 Positioner, though not with enclosed spring actuators.

• Designed for regulating 35 to 284 degrees Fahrenheit fluid temperatures.
• Robust die-cast enclosure ensuring durability.
• Effective diaphragm area of 8 square inches enhances control accuracy.

Product Highlights

Johnson Controls globe valve assemblies provide reliable and efficient functionality, ensuring ease of installation and maintenance.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7251CT+3008D

Technical Specifications

• Valve Type: Globe
• Actuator Type: Pneumatic
• Body Material: Brass
• Fluid Temperature Range: 35 to 284 degrees Fahrenheit
• Maximum Supply Air Pressure: 25 psig
• Static Pressure Rating: ANSI Class 250
