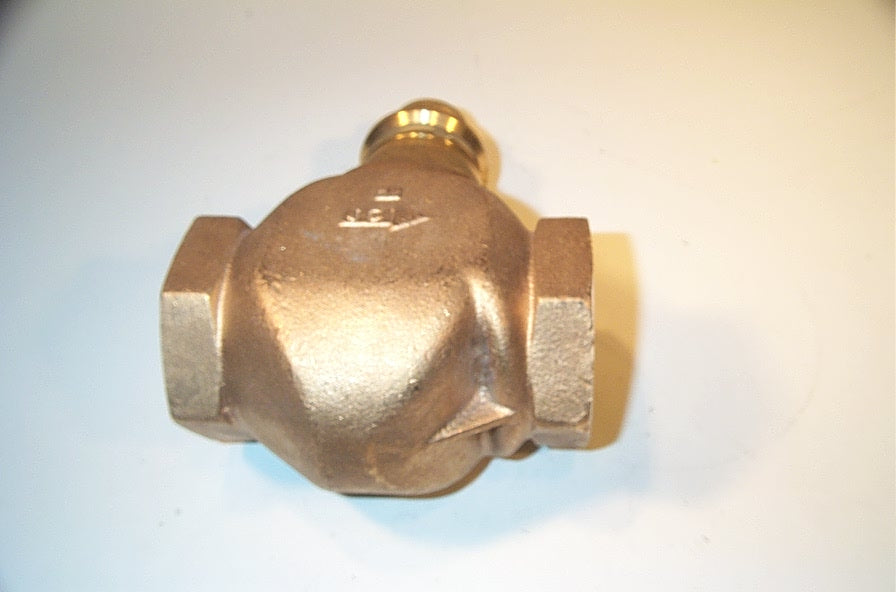

Johnson Controls VG7243RT823E01 Globe Valve Assembly, 2 Way 1-1/2 in

Product Description

The Johnson Controls VG7243RT823E01 is a globe valve assembly designed for HVAC systems. This two-way valve features a one and one-half inch connection size, suitable for both hot and chilled water applications.

• Industrial-grade actuator made from drawn steel
• Corrosion-resistant electro-painted finish
• Pneumatic actuator with barbed fitting for polytubing

Product Highlights

The VG7243RT823E01 valve operates efficiently with a pressure rating of ANSI Class 250. It supports temperatures from thirty-five degrees Fahrenheit to three hundred thirty-eight degrees Fahrenheit. Designed for either factory or field assembly, it ensures flexibility in installation.

Product Information

Standard Information

• Manufacturer: Johnson Controls
• Part Number: VG7243RT+823E01
• Minimum Order Quantity: 1

Technical Specifications

• Housing: Die-formed carbon steel
• Service: Hot water, chilled water, 50/50 glycol solutions, and 38 psig saturated steam
• Close-off Pressure: 82 psig
• Flow Characteristic: Equal percentage
• Operating Conditions: 35 F to 338 F (2 C to 170 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
