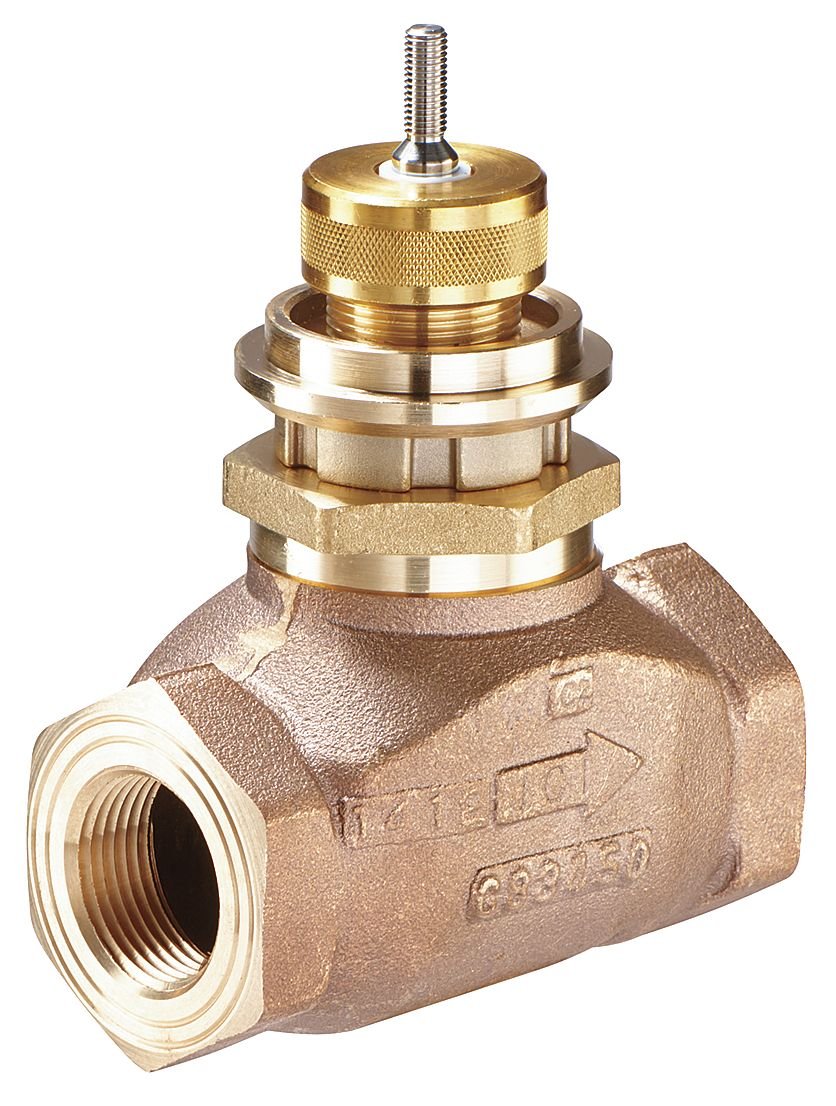

Johnson Controls VG7243RT Bronze Globe Valve Two-Way Push-Down-to-Close Stainless Steel Trim NPT 1.5 Inch Valve Size 28.9 Cv

Product Description

The Johnson Controls VG7243RT Bronze Globe Valve is designed for precise regulation of water or steam flow in HVAC systems, responding to controller demands. This valve is versatile with availability in normally open, normally closed, and three-way mixing configurations, and is compatible with both electric and pneumatic actuators.

• Wide size range from 0.5 to 2 inches with diverse actuator options
• Complies with ANSI Class 250 standards for pressure and temperature
• Ensures tight shutoff to enhance occupant comfort and energy efficiency

Product Highlights

Valve design ensures reliable performance and longevity under rigorous conditions. Standard Johnson Controls Ring Pack Packing's provide superior operating lifespan.

Product Information

Standard Information

• Brand: Johnson Controls
• Material: Bronze with Stainless Steel trim
• Size: 1.5 inch

Technical Specifications

• Connection Type: NPT
• Valve Type: Two-Way, Push-Down-to-Close
• Flow Coefficient (Cv): 28.9
• Maximum Water Temperature: 338 degrees Fahrenheit
• Safe Working Water Pressure: 308 psi
• Safe Working Steam Pressure: 100 psi
