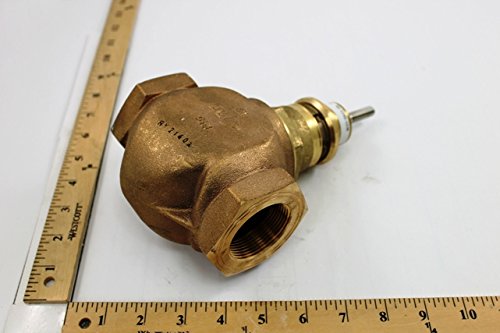

Johnson Controls VG7243RM+843D00 Series VG7000 Stainless Steel Trim Globe Valve with MP843D001C Pneumatic Actuator 4-8 psig Spring Range

Product Description

The Johnson Controls VG7243RM+843D00 Series VG7000 Stainless Steel Trim Globe Valve, integrated with the MP843D001C Pneumatic Actuator, efficiently manages hot or chilled water, or steam up to 100 psig. The spring-loaded PTFE and elastomer V-rings ensure reliable packing. This valve can handle a maximum supply air pressure of 25 psig and operates effectively within a fluid temperature range of 35 to 338 degrees Fahrenheit. The valve body holds an ANSI Class 250 static pressure rating.

• Controls hot or chilled water, or 100 psig saturated steam
• Spring-loaded PTFE and elastomer V-rings packing
• Maximum supply air pressure: 25 psig

Product Highlights

The Johnson Controls VG7243RM+843D00 provides robust control for HVAC systems. It includes an industrial-grade actuator suitable for VG7000 series valves with a 1-1/2 and 2-inch diameter and a 3/8-inch stem. Factory or field assembly optional for V-9502-95 Positioner.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7243RM+843D00

Technical Specifications

• Valve Series: VG7000
• Actuator Model: MP843D001C
• Valve Body Material: Stainless Steel
• Maximum Supply Air Pressure: 25 psig
• Fluid Temperature Range: 35 to 338 degrees Fahrenheit
• Valve Body Static Pressure Rating: ANSI Class 250
• Stem Diameter: 3/8 inches
• Valve Size Compatibility: 1-1/2 and 2 inches
