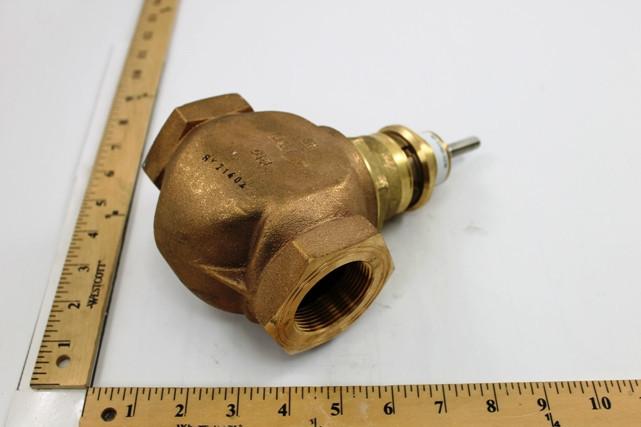

Johnson Controls VG7243RM+843C00 Stainless Steel Trim Globe Valve 3-7 psig

Product Description

Introducing the Johnson Controls VG7243RM+843C00, a stainless steel trim globe valve equipped with a Model MP843C001C pneumatic actuator. Designed for reliability in controlling hot or chilled water and saturated steam up to 100 psig, this valve ensures efficient operation.

• Durable construction handling fluids from 35 to 338 degrees Fahrenheit.
• ANSI Class 250 static pressure rating confirms its industrial utility.
• Spring-loaded PTFE and elastomer V-rings provide secure and tight sealing.

Product Highlights

Featuring a robust stainless steel body and a dependable pneumatic actuator, the VG7243RM+843C00 offers precise control with a 3-7 psig spring range and supports a maximum supply air pressure of 25 psig (172 kPa).

Product Information

Technical Specifications

• Maximum Supply Air Pressure: 25 psig (172 kPa)
• Fluid Temperature Range: 35 to 338°F (2 to 170°C)
• Valve Type: Globe Valve with Pneumatic Actuator
• Material: Stainless Steel Trim
• Valve Size: 1 and a half inches
• Application: HVAC system control for water and steam
• Static Pressure Rating: ANSI Class 250
