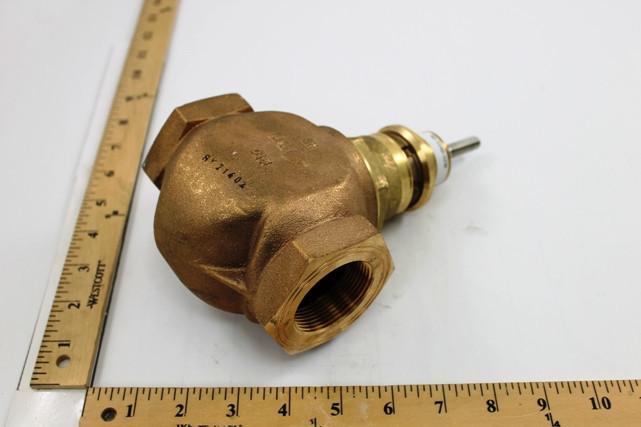

Johnson Controls VG7243RM Globe Valve 1.5 Inch Stainless Steel Trim

Product Description

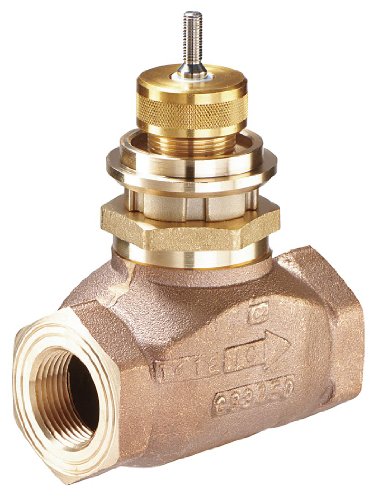

The Johnson Controls VG7243RM Globe Valve is designed to effectively regulate water or steam flow in HVAC systems. Essential for precise control, this valve utilizes a bronze body with a robust stainless steel trim.

• Features a wide size range from 1/2 inch to 2 inches, accommodating a variety of system requirements.
• Complies with ANSI Class 250 for pressure and temperature, ensuring durability and safety.
• Provides tight shutoff to enhance occupant comfort and optimize energy use.

Product Highlights

This valve series is compatible with both electric and pneumatic actuators, offering versatility in HVAC applications. The industry-standard Johnson Controls Ring Pack Packing ensures long operating life and reliability.

Product Information

Standard Information

• Connection Type: NPT End Connection
• Configuration: Two-Way, Push-Down-to-Close

Technical Specifications

• Dimension: 5 13/16 inches height, 5 1/8 inches width, 4 5/16 inches depth
• Valve Size: 1.5 inches
• Max. Water Temp: 338 Degrees F
• Safe Working Water Psi: 308 psi
• Safe Working Steam PSI: 100 psi
• Material: Bronze body, Stainless Steel trim
