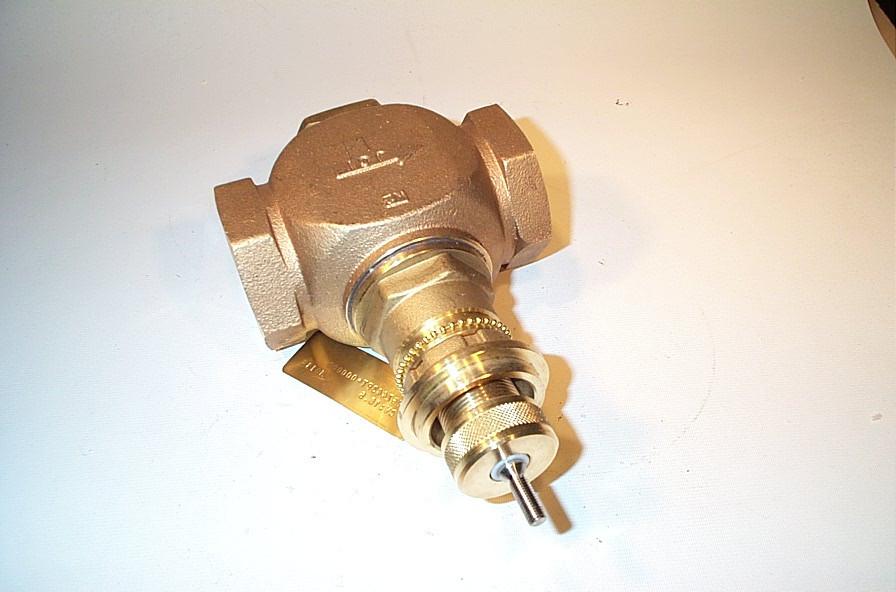

Johnson Controls VG7243PT+822E01 Globe Valve Assembly, 2 Way 1-1/4 in

Product Description

The Johnson Controls VG7243PT+822E01 is a globe valve assembly designed for HVAC applications. It features a two-way design and has a nominal pipe size of one and one-fourth inches. This valve is suitable for various fluids including hot water, chilled water, and glycol solutions. It involves a pneumatic actuator with a spring range of nine to thirteen pounds per square inch gauge.

• Industrial-grade drawn-steel actuator
• Corrosion-resistant electro-painted finish
• Factory or field assembly options available

Product Highlights

Engineered for durability and reliable performance in heating and cooling systems.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG7243PT+822E01

Technical Specifications

• Housing: Die-formed carbon steel
• Service: Hot water, chilled water, 50/50 glycol solutions, and 38 psig saturated steam
• Close-off Pressure: 128 psig
• Flow Characteristic: Equal percentage
• Operating Conditions: 35 F to 338 F (2 C to 170 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
• Pneumatic Actuator: Barbed fitting for one-fourth inch O.D. polytubing
• Cv Value: 18.5
