Johnson Controls VG7243PT 822D01 Globe Valve Assembly 2 Way 1-1/4 in

Product Description

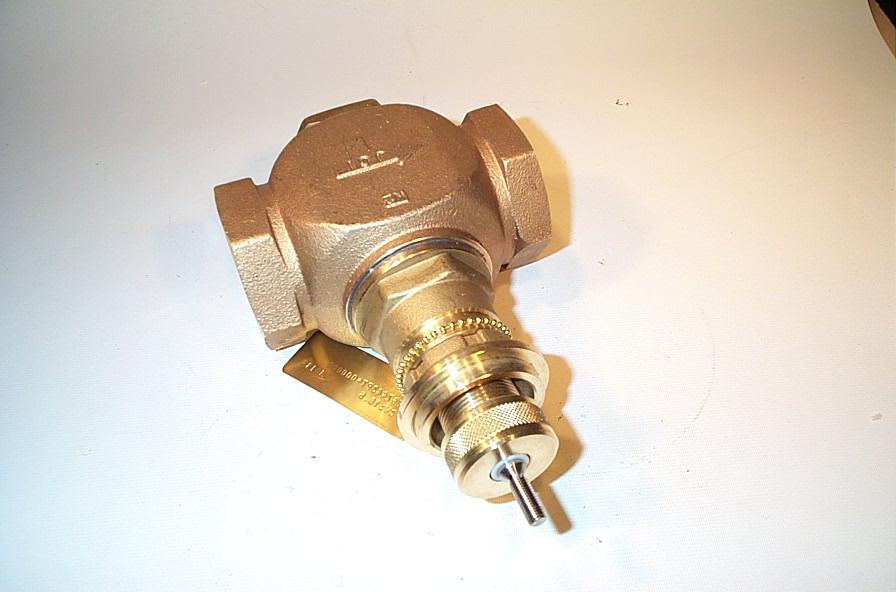

The Johnson Controls VG7243PT+822D01 is a two-way globe valve assembly designed for HVAC applications. This valve features a bronze body and a stainless steel stem and seat, ensuring durability and resistance to corrosion.

• Industrial-grade, drawn-steel actuator
• Corrosion-resistant, electro-painted finish
• Spring-loaded PTFE and elastomer V-rings

Product Highlights

This valve operates under a static pressure rating of ANSI Class 250. It is suitable for hot and chilled water, glycol solutions, and steam applications.

Product Information

Standard Information

• Part #: VG7243PT+822D01
• Brand: Johnson Controls

Technical Specifications

• Housing: Die-formed carbon steel
• Service: Hot water, chilled water, 50/50 glycol solutions, and 38 psig saturated steam for HVAC systems
• Close-off Pressure: 128 psig
• Flow Characteristic: Equal percentage
• Operating Conditions: 35 F to 338 F (2 C to 170 C)
• Actuator Operating Conditions: -20 F to 150 F (-29 C to 66 C)
• Pneumatic Actuator: Yes
• Barbed Fitting: For 1/4 in. O.D. polytubing
